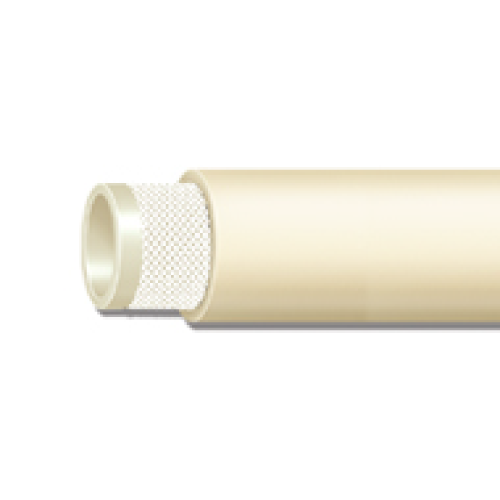

Hot Wash White – Gates 113W (3321W)
Tube: Type P (EPDM). White. FDA
Reinforcement: High tensile synthetic textile cord.
Cover: Type P (EPDM). White all sizes are perforated.
Application: Hot water up to 100°C where steam is injected into the water for food handling or processing plant wash down service hose with a white cover and tube. Especially useful for dairy applications.
CAUTION: NOT RECOMMENDED FOR USE WITH PURE STEAM
Working Pressure: 200 psi / 1.37 Mpa
Safety Factor: 3:1
Temperature: -20°C +100°C
| Internal Diameter | Outer Diameter | Suction | Min. Bend Radius | Coil Length | Weight | ||||
| In. | mm | In. | mm | In. Hg | mm Hg | In. | mm | m | kg/m |
| 1/2 | 12.7 | 0.91 | 23 | 15.0 | 381 | 3.0 | 76.2 | 100 | 0.44 |
| 3/4 | 19.0 | 1.25 | 32 | 15.0 | 381 | 4.5 | 114.0 | 100 | 0.82 |
| 1 | 25.4 | 1.53 | 39 | 15.0 | 381 | 6.0 | 152.4 | 100 | 1.10 |
