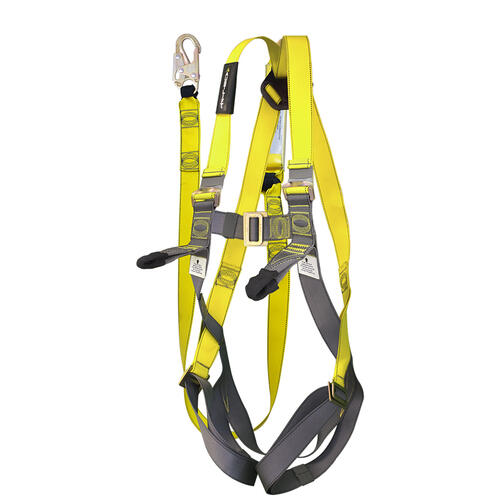

Full body harness with 1.8m webbing lanyard and snap hook permanently attached. Certified to AS/NZS 1891.1 (Harness Component) and AS 1891.5 standards (Lanyard Component)
SUITABLE FOR: construction & maintenance, warehouse, roofing work, and elevated work platforms
- Large permanently upright D-ring fall arrest rated.
- 2/3 bar buckle connection.
- Fall arrest frontal belay loops.
- 1.8M shock absorbing lanyard with snap hook attached.
- Certified & Approved to AS/NZS 1891.1.
- The standard harness is a one-size-fits-most covering M – XXL.
Suspension Trauma Strap NOT INCLUDED, Sold separately.

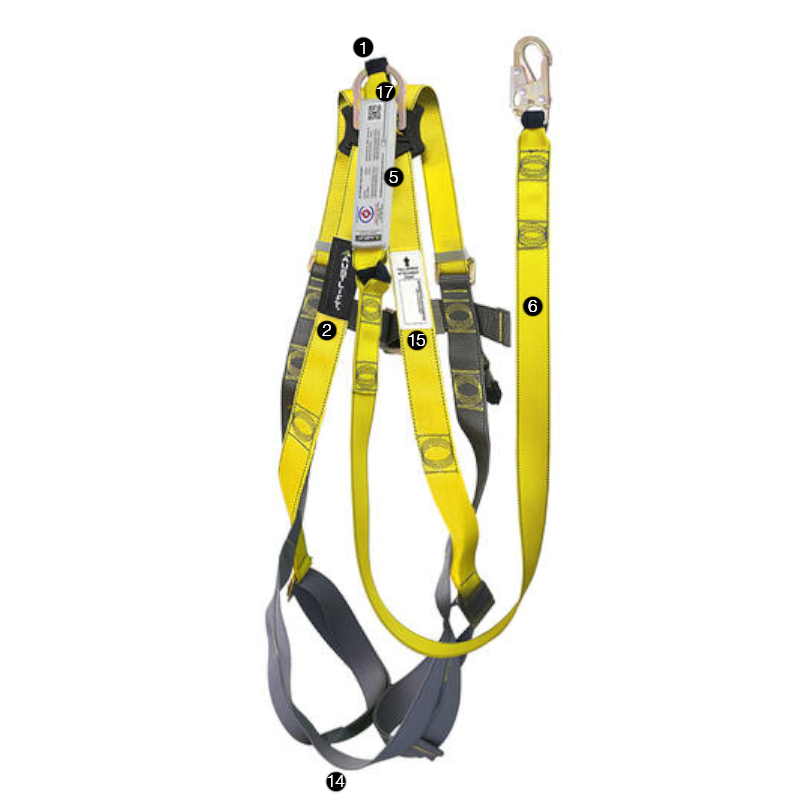

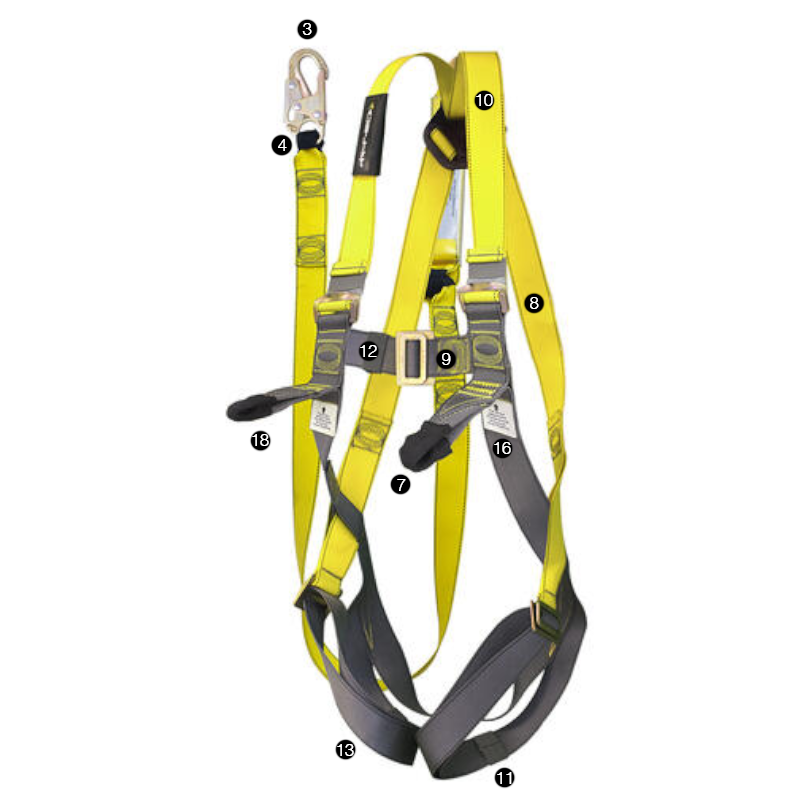

| 1. Permanent Upright Dorsal D-ring: Stamped Alloy Steel with Splitted Polymer Sleeve which prevents the webbing from being damaged by the metallic contact of dorsal D-ring. MBS 23kN, Proof Load Tested. |
| 2. Product Label: with protection sleeve |
| 3. Snap Hook: Alloy Steel, Meets ANSIZ359.12-2009, 16kN Gate, MBS 23kN. 20mm Opening. |
| 4. Abrasion Resistant Covering: Prevents the webbing from being damaged by the metallic contact of the connector. |
| 5. Energy Absorber: 140kg rated energy absorber. |
| 6. Single Webbing Lanyard: Permanent attached to the D-ring, 44mm Width, 1.8m Length, Max. Free fall 2M, AS 1891.4 with ANSI D/A hook. |
| 7. Fall arrest & Retrieval attachment loops: The loops at the ends are protected by an abrasion resistant covering. This prevents the webbing from being damaged by the metallic contact of the connector. |
| 8. Adjustable Buckle: provided with pull grip feature to enable easy pull down with thumb and easy to adjust straps for a good lift. |
| 9. Combination Buckle: Stamped Alloy Steel, MBS 15kN |
| CORE Range Standard Features |
| 10. Polyester Webbing: |
44mm width and designed with unique aesthetic stitch pattern for enhanced stitching strength with smart styling. |
| 11. Elastic Loops: |
Designed to retain the excess strap while adjustment. |
| 12. Adjustable Chest Strap: |
Equipped with elastic loops to enable the user to bring chest strap in required position. |
| 13. Adjustable Thigh Strap: |
Equipped with elastic loops to enable the user to bring chest strap in required position. |
| 14. Ideally Positioned Sit Strap: |
Designed for long lasting comfort. |
| 15. Marking: |
Denotes attachment point for fall arrest. |
| 16. Marking: |
Denotes attachment point for fall arrest & retrieval. |
| 17. Dorsal Attachment Point: |
For attachment for fall arrest, enables straight upright position in the event of a fall. |
| 18. Frontal Attachment Point: |
For attachment for fall arrest, enables easy connection in the event of a fall. |
