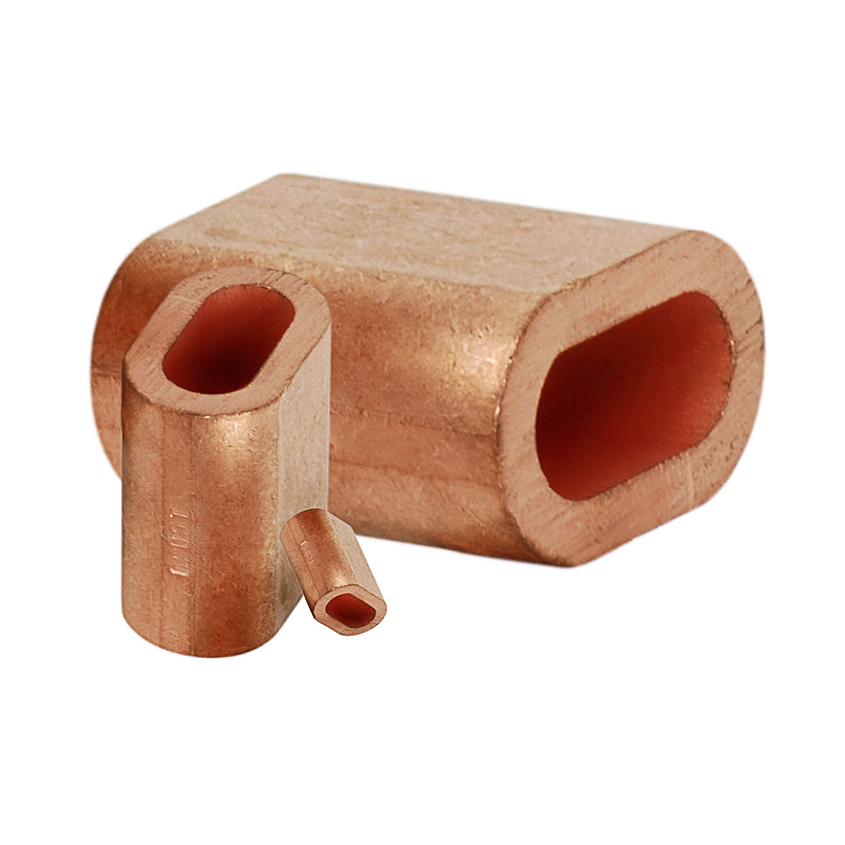

Copper Ferrule
Austlift copper type ferrules made to EN standard and mainly used for stainless steel wire rope to form an eye for wire rope slings, winch cable etc.
- High quality ferrules and conforms to EN13411.
- Copper hydraulic machine press type.
- Sizes from 1.5 mm to 16 mm.
- For turn-back wire rope splicing.
- Stamped with identification mark.

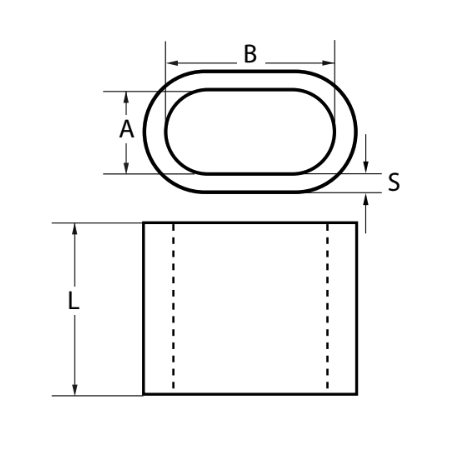

| CODE | SIZE (mm) | Wt. (g) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|
| A | B | S | L | |||
| 304015 | 1.5 | 0.4 | 1.8 | 3.6 | 1.05 | 6 |
| 304020 | 2 | 0.6 | 2.4 | 4.8 | 0.85 | 7 |
| 304025 | 2.5 | 0.8 | 2.7 | 5.4 | 1.1 | 9 |
| 304030 | 3 | 2.6 | 3.3 | 6.6 | 1.35 | 11 |
| 304035 | 3.5 | 4.4 | 3.9 | 7.8 | 1.6 | 13 |
| 304040 | 4 | 7 | 4.3 | 8.8 | 1.7 | 14 |
| 304050 | 5 | 11.8 | 5.6 | 11.2 | 2.1 | 18 |
| 304060 | 6 | 12 | 6.7 | 13.4 | 2.5 | 21 |
| 304065 | 6.5 | 25 | 6.9 | 14 | 2.7 | 23 |
| 304080 | 8 | 46 | 8.5 | 17 | 3.5 | 28 |
| 304090 | 9 | 80 | 9.9 | 19.8 | 3.7 | 32 |
| 304100 | 10 | 90 | 10.9 | 21.8 | 4.1 | 35 |
| 304120 | 12 | 150 | 13.2 | 26.4 | 4.9 | 42 |
| 304140 | 14 | 240 | 15.3 | 30.6 | 5.8 | 49 |
| 304160 | 16 | 374 | 17.5 | 35 | 6.7 | 56 |
