Compressed Air – Heavy Duty Mining 20 Bar (300 psi) – Alfagomma 151AA

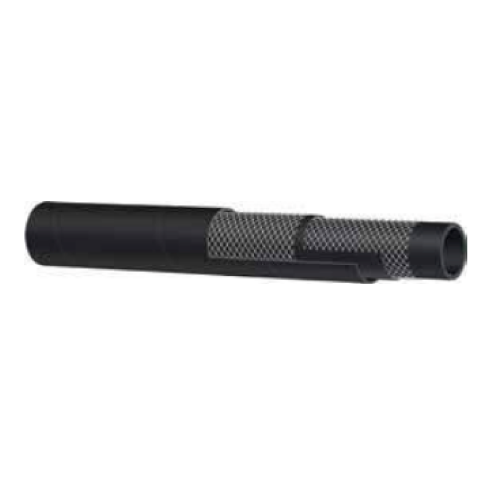

151AA Cross Section

Tube: black SBR/NBR – oil mist resistant
Reinforcement: high tensile textile cords
Cover: black SBR – abrasion and ozone resistant.
Application: compressed air designed for heavy duty mining applications.
Working Pressure: 20 bar / 300 psi
Burst Pressure: 60 bar / 900 psi
Constant Operation: -30 °C +80 °C (-22 °F +176 °F)

Internal Diameter Outer Diameter Wall Thickness Weight
ID mm ID inch OD mm OD Inch mm kg/m lb/ft
13 1/2″ 23 0.91 5 0.42 0.29
19 3/4″ 31 1.22 6 0.69 0.47
25 1′ 37 1.46 6 0.86 0.58
38 1 1/2″ 52 2.05 7 1.26 0.85
51 2″ 67 2.64 8 2.19 1.48
