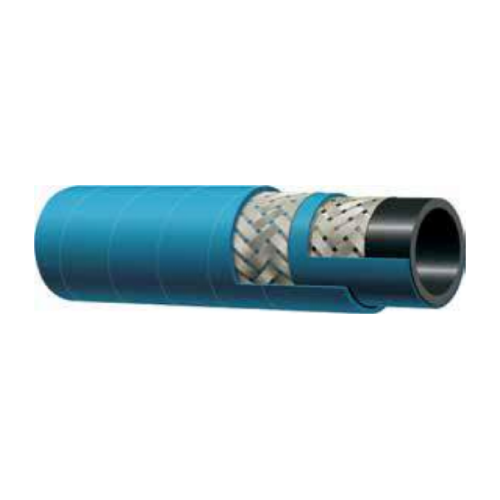

Compressed Air 80 Bar (1200 psi) – High Temperature Steel Braided – Alfagomma 132AE
Tube: Black Chlorobutyl – oil mist (maximum six parts per million) and high temperature resistant
Reinforcement: High tensile steel wire braids.
Cover: Blue EPDM – abrasion and ozone resistant – pin pricked.
Application: High pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Designed for use of EN 853 2ST fittings.
Working Pressure: 80 bar / 1200 psi
Burst Pressure: 320 bar / 4640 psi
Constant Operation: -40°C +150°C (-40°F +300°F) with peaks of 232°C (450°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Bend Radius | Weight | ||||
| ID mm | ID inch | OD mm | OD Inch | mm | mm | Inch | kg/m | lb/ft |
| 51 | 2″ | 67 | 2.64 | 8 | 255 | 10.04 | 2.62 | 1.77 |
