Compressed Air 40 bar (600 psi) – High Temperature Oil Resistant Steel Braided – Alfagomma 142AK

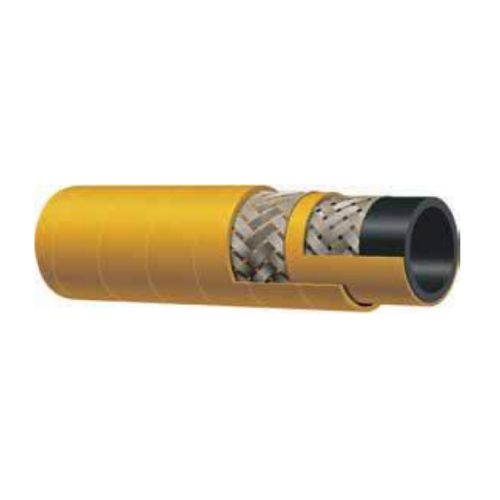

142AK Cross Section

Tube: Black NBR (RMA Class A) – oil mist resistant.
Reinforcement: High tensile steel wire braids.
Cover: Yellow SBR/NBR – abrasion, ozone, hydrocarbon and flame resistant – pin pricked.
Application: High pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.
Constant Operation: -40°C +120°C (-40°F +248°F)

Internal Diameter Outer Diameter Wall Thickness Working Pressure Burst Pressure Bend Radius Weight
ID mm ID inch OD mm OD Inch mm bar psi bar psi mm Inch kg/m lb/ft
51 2″ 64 2.52 6.5 40 600 160 2320 255 10.04 1.91 1.29
76 3″ 90 3.54 7 40 600 120 1750 380 14.96 3.27 2.2
102 4″ 116 4.57 7 40 600 816 32.17 4.10 2.76
