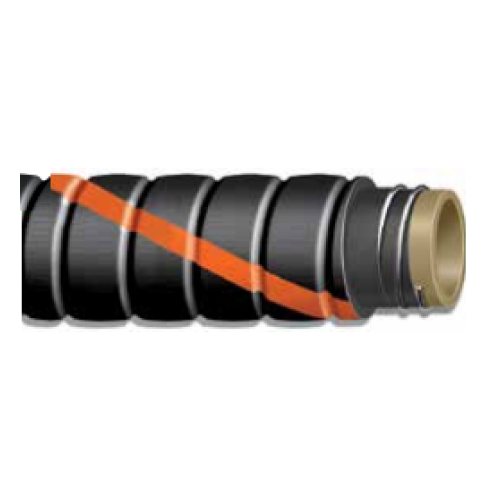

Chem Master® – Gates 4695
Tube: Type K (Gatron Modified Cross-Linked Polyethylene.) Tan. High chemical resistance.
Reinforcement: Synthetic, high tensile textile cord with steel wire helix.
Cover: Type P (EPDM). Black or green corrugated with orange spiral stripe. Blue, red and yellow covers available on special order.
Application: Tank truck, barge, ship or storage tank transfer of a variety of chemical products.
Design Factor: 4:1
Temperature: -40°C +121°C normal service
| Internal Diameter | Outer Diameter | Working Pressure | Suction | Min. Bend Radius | Weight | |||||
| In. | mm | In. | mm | psi | Mpa | In Hg | mm Hg | In. | mm | Kg/m |
| 3/4 | 19.1 | 1.25 | 31.8 | 200 | 1.38 | 30.0 | 762 | 4.0 | 102 | 0.63 |
| 1 | 25.4 | 1.50 | 38.1 | 200 | 1.38 | 30.0 | 762 | 5.0 | 127 | 0.79 |
