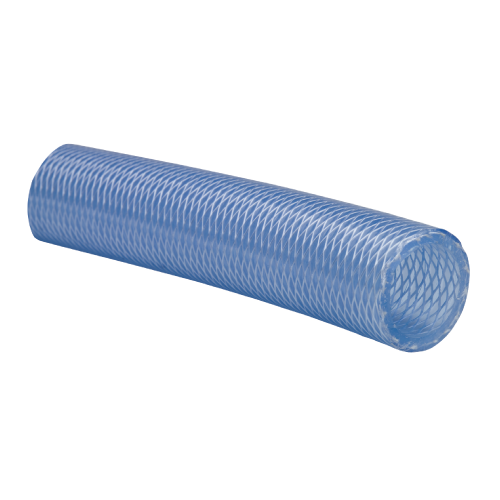

C View SP – Barfell
Specifically designed to outperform all other hoses in the beverage industry. It is both a suction and pressure hose in one. It is UV light resistant, conforms to AS2070 and EU 2022-72-EC for use with food products and uses a plastic helix that will not rust or cut the hands of operators.
Colour: Clear with Clear Rigid PVC Spiral
Temperature Range: -5°C to +60*C (+23°F to +140°F)
Chemical Resistance: Excellent
Flexibility: Excellent
Abrasion Resistance: Excellent
Conforms to: Australian Standard AS2070, European Standard EU 2002-72-EC, certified phenol free.
Application: Pressure or suction of any liquid or semi liquid that requires a food grade hose. Included are wineries, milk processing plants or tankers. Can be used with wine and spirits to 28 1/4 proof.
| Diameter (mm) | Vacuum Rating | Working Press. (at 20°C) | Min Bend Radius | Weight | ||
| ID | OD | KPa/20°C | Mpa | P.S.I | mm | kg/m |
| 25.0 | 35.4 | -90 | 1.2 | 175 | 130 | 0.68 |
| 38.0 | 49.9 | -90 | 1.2 | 175 | 220 | 1.01 |
| 51.0 | 64.4 | -90 | 1.0 | 145 | 300 | 1.67 |
| 76.2 | 92.4 | -90 | 1.0 | 145 | 490 | 2.57 |
