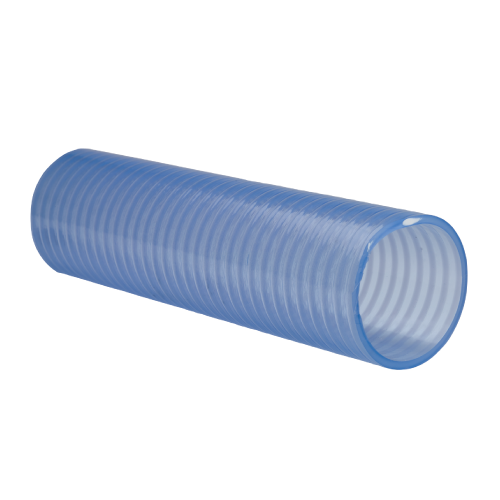

C View S – Barfell
An extremely flexible, clear suction/discharge hose suitable for food and beverages. The clear rigid helix makes the hose completely transparent. it is UV light resistant and conforms to AS2070 1999 and EU2022-72-EC.
Colour: Clear with Clear Rigid PVC Spiral
Temperature Range: -5°C to +60*C (+23°F to +140°F)
Chemical Resistance: Excellent
Flexibility: Excellent
Abrasion Resistance: Good
Conforms to: Australian Standard AS2070, European Standard EU 2002-72-EC, certified phenol free.
Application: Suction of any fluid that requires a food grade hose including wineries, milk collection or processing, canneries, and food processing plants. It can be used for the suction or delivery of wine & spirits to 28 1/4 proof.
| Diameter (mm) | Vacuum Rating | Working Press. (at 20°C) | Min Bend Radius | Weight | ||
| ID | OD | KPa/20°C | Mpa | P.S.I | mm | kg/m |
| 25 | 32 | -90 | 1.0 | 145 | 120 | 0.43 |
| 32 | 39.6 | -90 | 0.9 | 130 | 150 | 0.65 |
| 38 | 45.8 | -90 | 0.9 | 130 | 200 | 0.70 |
| 50.8 | 60.2 | -90 | 0.7 | 102 | 270 | 1.05 |
| 63.5 | 73.5 | -90 | 0.6 | 87 | 330 | 1.44 |
| 76.2 | 87.8 | -90 | 0.6 | 87 | 440 | 1.98 |
| 101.0 | 114.4 | -90 | 0.5 | 73 | 620 | 3.14 |
