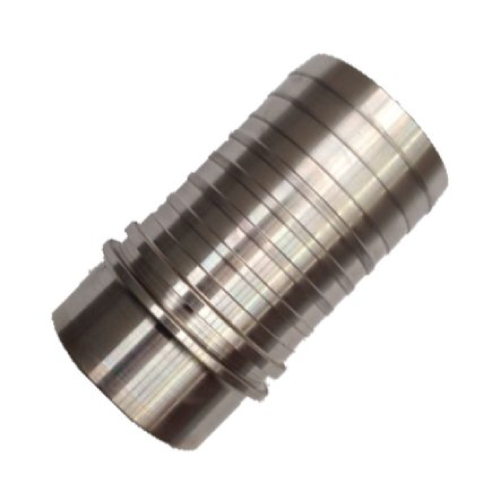

Butt Weld External Crimp Hose Tail 316

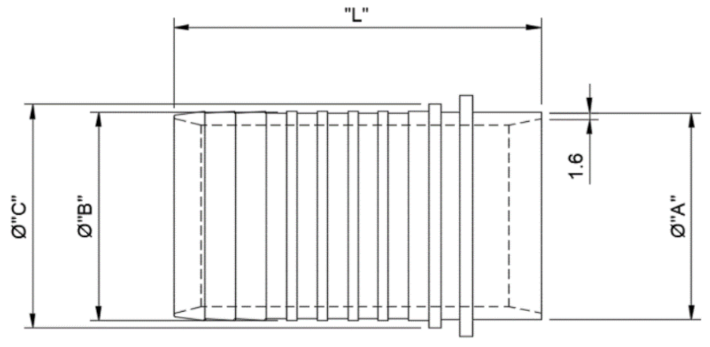

| Tube OD (mm) | A | B | C | L | WT | Weight (kg) |
| 25.4 | 25.4 | 25.8 | 29 | 65 | 1.6 | 0.07 |
| 38.1 | 38.1 | 38.5 | 42 | 76 | 1.6 | 0.18 |
| 50.8 | 50.8 | 51.2 | 55 | 90 | 1.6 | 0.36 |
| 63.5 | 63.5 | 63.9 | 68 | 90 | 1.6 | 0.37 |
| 76.2 | 76.2 | 76.5 | 84 | 100 | 1.6 | 0.53 |
| 101.6 | 101.6 | 102 | 109 | 107 | 1.6 | 0.73 |
