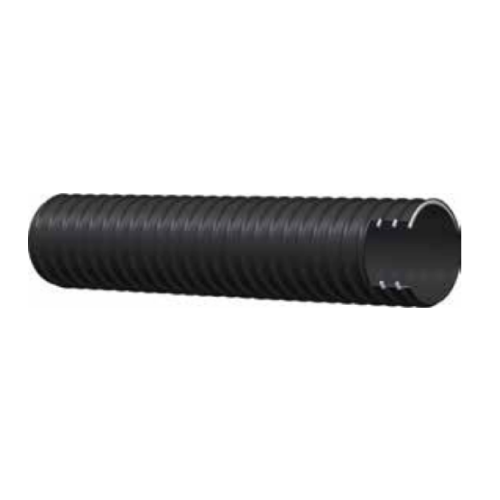

Bulk Material Suction & Delivery Polyurethane Lined – Alfagomma 767AL
Construction: black antistatic polyurethane co-extruded with black PVC – abrasion and ozone resistant
Reinforcement: white shock resistant rigid PVC
Application: bulk material suction and low pressure delivery-gravity feed.
Specially designed for gravel, cement and iron ore transfer.
Constant Operation: -20 °C +60 °C (-4 °F +140 °F)
| Internal Diameter | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | |||||
| ID mm | ID inch | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 51 | 2″ | 3 | 45 | 9 | 135 | 102 | 4.02 | 90 | 0.90 | 0.61 |
| 63 | 2 1/2″ | 3 | 45 | 9 | 135 | 126 | 4.96 | 90 | 1.47 | 0.99 |
| 76 | 3″ | 3 | 45 | 9 | 135 | 152 | 5.98 | 90 | 1.83 | 1.23 |
| 102 | 4″ | 2 | 30 | 6 | 90 | 204 | 8.03 | 90 | 2.98 | 2.01 |
| 127 | 5″ | 2 | 30 | 6 | 90 | 254 | 10.00 | 90 | 4.20 | 2.83 |
| 152 | 6″ | 2 | 30 | 6 | 90 | 304 | 11.97 | 90 | 5.15 | 3.47 |
