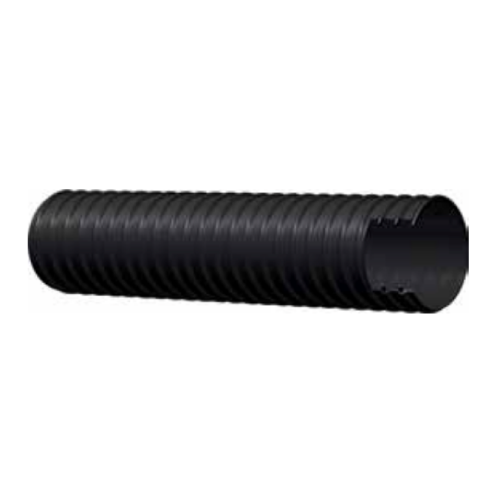

Bulk Material Suction & Delivery – Alfagomma 780AA
Tube: Black antistatic synthetic elastomer.
Reinforcement: Black shock resistant thermoplastic elastomer.
Cover: Bulk material suction and low pressure delivery & gravity feed.
Specially designed for gravel, cement and iron ore transfer.
Application: Mineral recovery in sampling operations.
Constant Operation: -15°C +60°C (+5°F +140°F)
| Internal Diameter | Outer Diameter | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | ||||||
| ID mm | ID inch | OD mm | OD Inch | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 38 | 1 1/2″ | 47 | 1.85 | 2 | 30 | 8 | 120 | 80 | 3.15 | 100 | 0.57 | 0.39 |
| 51 | 2″ | 61 | 2.40 | 2 | 30 | 8 | 120 | 120 | 4.72 | 100 | 0.86 | 0.58 |
| 63 | 2 1/2″ | 75 | 2.95 | 2 | 30 | 8 | 120 | 200 | 7.87 | 100 | 1.09 | 0.74 |
| 76 | 3″ | 90 | 3.54 | 1 | 15 | 4 | 60 | 240 | 9.45 | 100 | 1.39 | 0.94 |
| 102 | 4″ | 119 | 4.69 | 1 | 15 | 4 | 60 | 320 | 12.60 | 100 | 2.56 | 1.73 |
| 127 | 5″ | 146 | 5.75 | 1 | 15 | 4 | 60 | 480 | 18.90 | 100 | 3.32 | 2.24 |
| 152 | 6″ | 175 | 6.89 | 1 | 15 | 4 | 60 | 720 | 28.35 | 100 | 4.89 | 3.29 |
