Bulk Material Suction & Delivery 10 Bar (150 psi) – Alfagomma 720AA

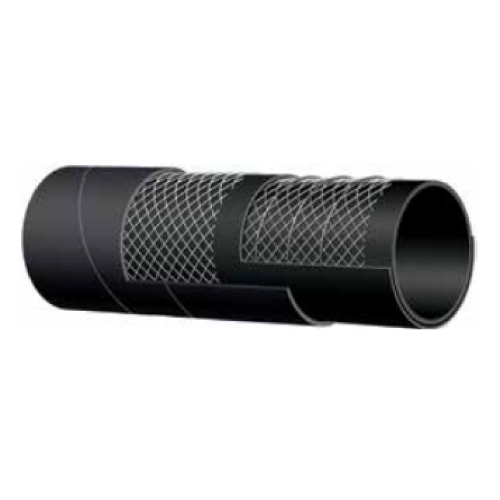

Tube: Black conductive NR – abrasion resistant.
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Black conductive SBR/NR – abrasion and ozone resistant.
Application: Bulk material suction and delivery in heavy duty applications Specially designed for dry cement, grain and animal feed transfer.
Constant Operation: -30°C +80°C (-22°F +176°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | ||||||
| ID mm | ID inch | OD mm | OD Inch | mm | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 51 | 2″ | 65 | 2.56 | 7 | 10 | 150 | 30 | 450 | 153 | 6.02 | 100 | 1.43 | 0.97 |
| 63 | 2 1/2″ | 77 | 3.03 | 7 | 10 | 150 | 30 | 450 | 189 | 7.44 | 90 | 1.90 | 1.28 |
| 76 | 3″ | 90 | 3.54 | 7 | 10 | 150 | 30 | 450 | 228 | 8.98 | 90 | 2.28 | 1.54 |
| 76 | 3″ | 92 | 3.62 | 8 | 10 | 150 | 30 | 450 | 228 | 8.98 | 90 | 2.60 | 1.75 |
| 90 | 3 1/2″ | 106 | 4.17 | 8 | 10 | 150 | 30 | 450 | 270 | 10.63 | 90 | 3.23 | 2.18 |
| 102 | 4″ | 116 | 4.57 | 7 | 10 | 150 | 30 | 450 | 306 | 12.05 | 90 | 3.18 | 2.14 |
| 102 | 4″ | 118 | 4.65 | 8 | 10 | 150 | 30 | 450 | 306 | 12.05 | 90 | 3.60 | 2.42 |
| 127 | 5″ | 143 | 5.63 | 8 | 5 | 75 | 15 | 225 | 508 | 20.00 | 80 | 4.75 | 3.20 |
| 127 | 5″ | 145 | 5.71 | 9 | 5 | 75 | 15 | 225 | 508 | 20.00 | 80 | 5.27 | 3.55 |
| 152 | 6″ | 168 | 6.61 | 8 | 5 | 75 | 15 | 225 | 608 | 23.94 | 80 | 5.95 | 4.00 |
| 203 | 8″ | 221 | 8.7 | 9 | 5 | 75 | 15 | 225 | 812 | 31.97 | 70 | 8.99 | 6.05 |
