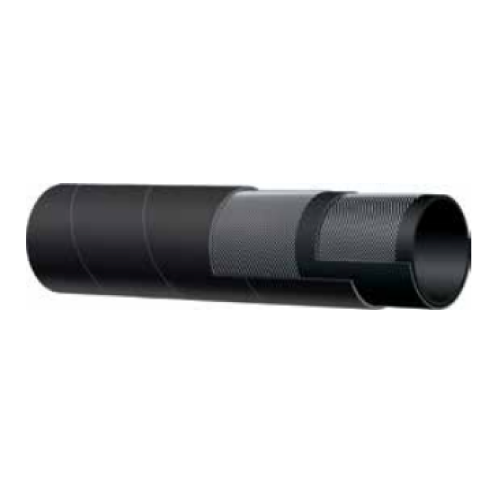

Bulk Material Delivery 5 Bar (75 psi) – Alfagomma 760AA
Tube: Black conductive NR – abrasion resistant.
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Black conductive SBR/NR – abrasion and ozone resistant.
Application: Bulk material delivery.
Specially designed for dry cement, grain and animal feed transfer.
Working Pressure: 5 bar / 75 psi
Burst Pressure: 15 bar / 225 psi
Constant Operation: -30°C +80°C (-22°F +176°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 75 | 3″ | 93 | 3.66 | 9 | 2.31 | 1.56 |
| 90 | 3 1/2″ | 102 | 4.02 | 6 | 2.06 | 1.39 |
| 90 | 3 1/2″ | 110 | 4.33 | 10 | 3.14 | 2.12 |
| 100 | 4″ | 120 | 4.72 | 10 | 3.45 | 2.32 |
| 102 | 4″ | 114 | 4.49 | 6 | 2.31 | 1.56 |
| 102 | 4″ | 118 | 4.65 | 8 | 2.71 | 1.83 |
| 102 | 4″ | 120 | 4.72 | 9 | 3.13 | 2.11 |
| 110 | 4 5/16″ | 122 | 4.8 | 6 | 2.47 | 1.66 |
| 127 | 5″ | 145 | 5.71 | 9 | 3.80 | 2.56 |
