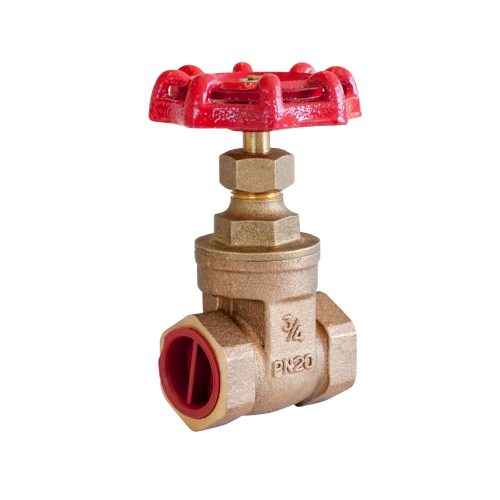

Bronze Screwed Gate Valve
Thread: ISO 228
Max Working Temperature: 180°C
Cold Working Pressure: 1600kPa
Applications – Water, Oil, Gas, Irrigation
| Imperial Size | L (mm) | H (mm) | W (mm) | Approx kg/pc |
| 1/2″ | 43 | 85 | 50 | 0.27 |
| 3/4″ | 48 | 100 | 50 | 0.39 |
| 1″ | 57 | 120 | 58 | 0.53 |
| 1 1/4″ | 63 | 145 | 77 | 0.71 |
| 1 1/2″ | 65 | 155 | 77 | 0.89 |
| 2″ | 78 | 190 | 97 | 1.27 |
| 3″ | 96 | 260 | 108 | 2.4 |
| Name of Parts | Material |
| Body | Bronze |
| Bonnet | Bronze |
| Wedge | Bronze |
| Stem | Bronze |
| Hand Wheel | Ductile Iron |
