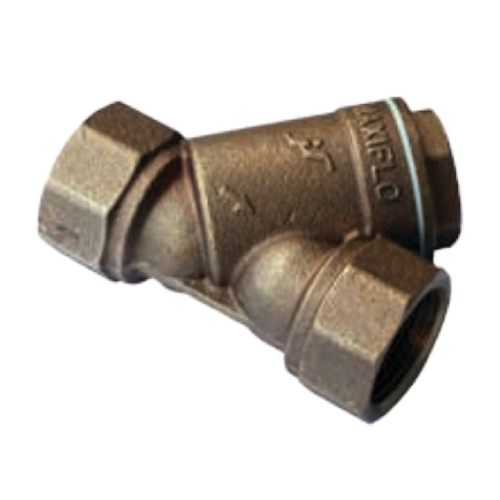

Brass ‘Y’ Strainer
Thread: AS 1722.1
Cold Working Pressure: 1380 kPa
MAX Working Temperature: 200°C
Applications: Oil, Water
Body, Bonnet, Hinge Pin & Nut are all Brass.

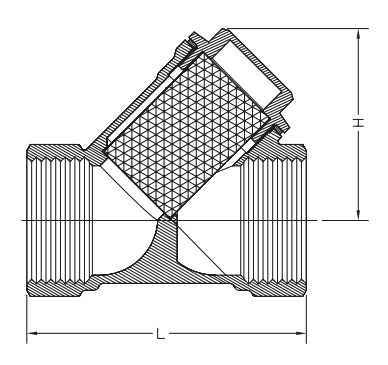

| Imperial Size | L (mm) | H (mm) | Mesh Diameter (mm) | Mesh Centre to Centre (mm) | Approx. kg/pc |
| 3/8″ | 47 | 31 | 0.8 | 1 | 0.07 |
| 1/2″ | 65 | 34 | 0.8 | 1 | 0.23 |
| 3/4″ | 80 | 42 | 0.8 | 1 | 0.35 |
| 1″ | 96 | 48 | 0.8 | 1 | 0.59 |
| 1 1/4″ | 104 | 55 | 0.8 | 1 | 0.83 |
| 1 1/2″ | 116 | 66 | 0.8 | 1 | 1.19 |
| 2″ | 140 | 74 | 0.8 | 1 | 1.95 |
| 2 1/2″ | 168 | 85 | 0.8 | 1 | 2.38 |
