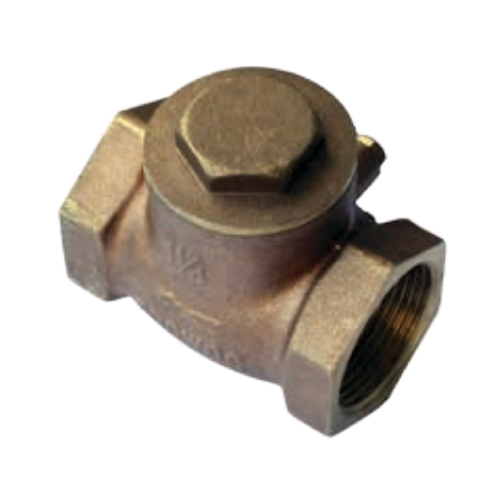

Brass Swing Check Valve BSP
Thread: AS 1722.1
Cold Working Pressure: 1380 kPa
MAX Working Temperature: 200°C
Applications: Oil, Water
Body, Bonnet, Hinge Pin & Nut are all Brass.

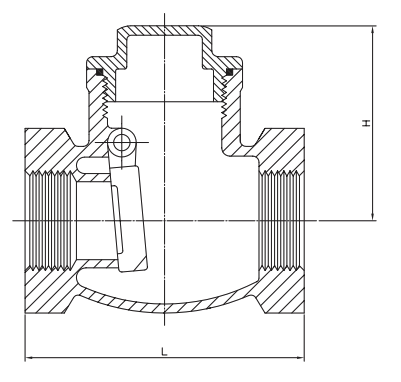

| Imperial Size | H (mm) | L (mm) | Approx. kg/pc |
| 1/2″ | 34 | 52 | 0.18 |
| 3/4″ | 37 | 60 | 0.26 |
| 1″ | 45 | 74 | 0.39 |
| 1 1/4″ | 50 | 82 | 0.59 |
| 1 1/2″ | 60 | 95 | 0.91 |
| 2″ | 70 | 107 | 1.22 |
| 2 1/2″ | 85 | 143 | 2.21 |
| 3″ | 100 | 155 | 3.59 |
| 4″ | 110 | 178 | 5.29 |
