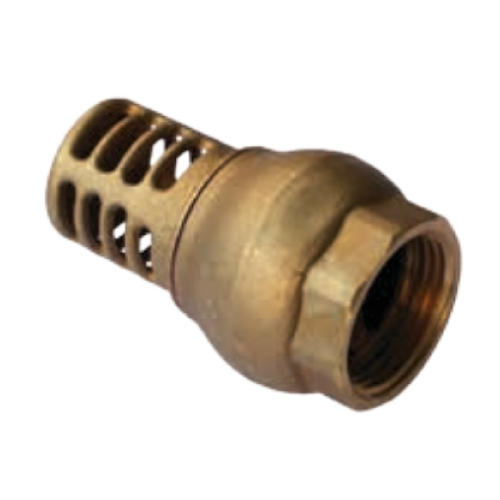

Brass Foot Valve
Thread: AS 1722.1
Cold Working Pressure: 965 kPa
MAX Working Temperature: 100°C
Applications: General, Irrigation, Rural services
Body is made from Brass. Gasket is NBR
| Imperial Size | H (mm) | L (mm) | Approx. kg/pc |
| 1/2″ | 61.5 | 26 | 0.16 |
| 3/4″ | 68 | 31.5 | 0.2 |
| 1″ | 76 | 38 | 0.25 |
| 1 1/4″ | 93 | 47 | 0.42 |
| 1 1/2″ | 103 | 53 | 0.59 |
| 2″ | 114 | 65.6 | 0.92 |
| 2 1/2″ | 125 | 85 | 1.2 |
| 3″ | 140 | 95 | 1.59 |
| 4″ | 185 | 121 | 2.68 |
