Ball-Fence Industrial Hand Rail
- Modular industrial handrail system that includes stanchions in a range of configurations
- Components are assembled on site or can be partially assembled in our factory and delivered to site in sections for simple fixing. (Charges apply)
- Components are all hot dip galvanised
- Complies to AS 1657:2018
- Suitable for indoor and outdoor use

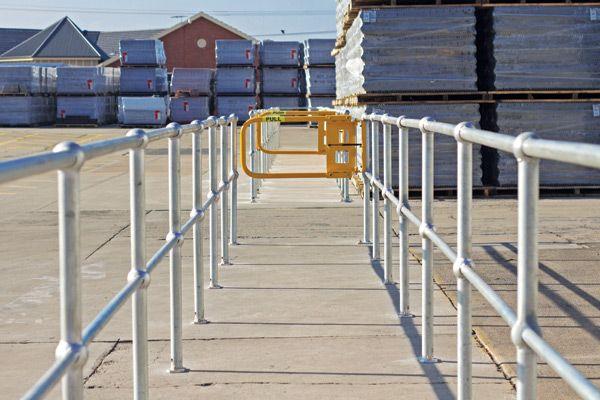

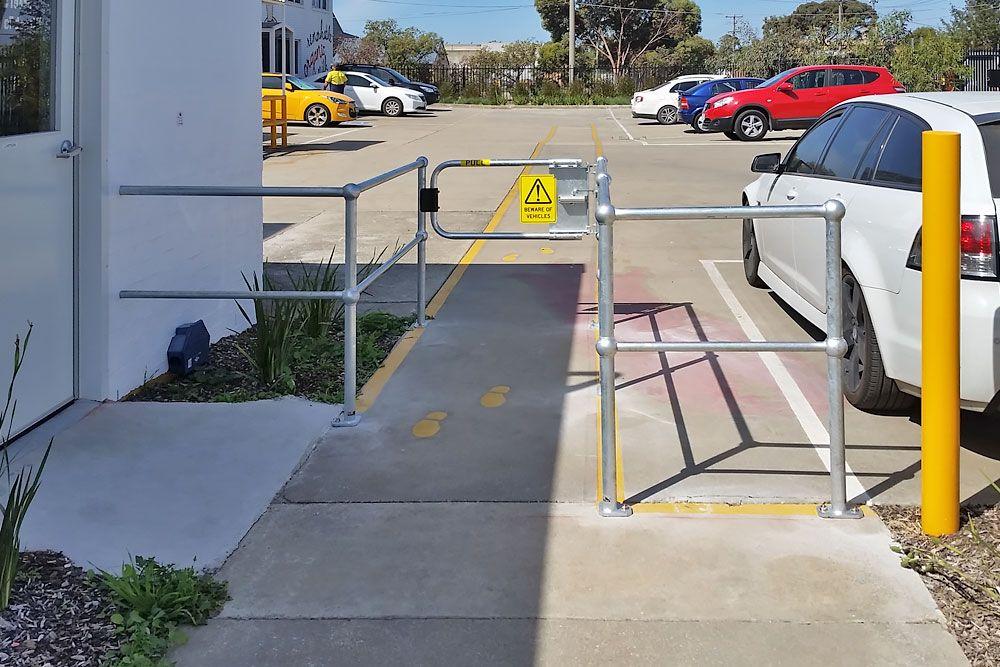

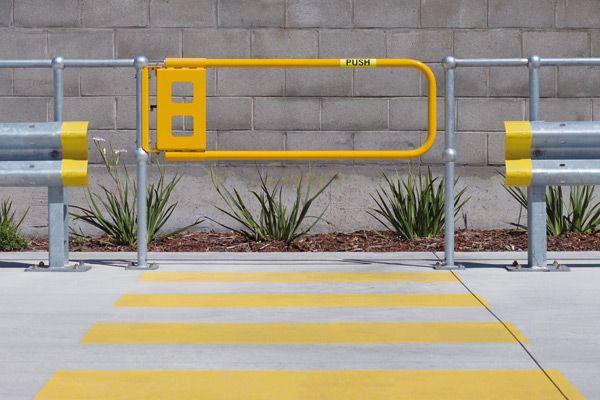

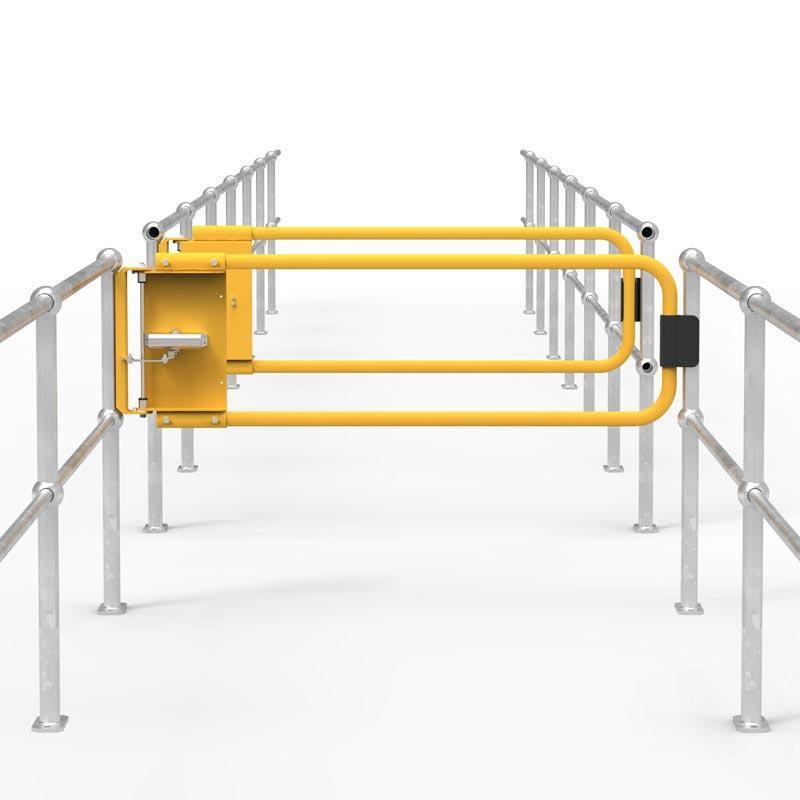

- Self closing gates available
Modular industrial handrail and kneerail system

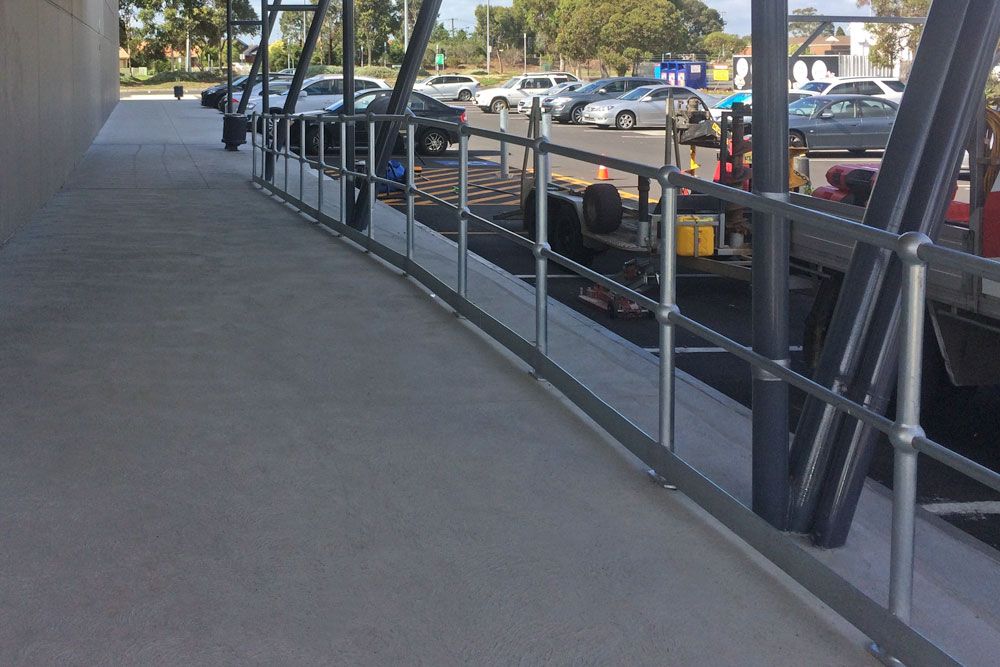

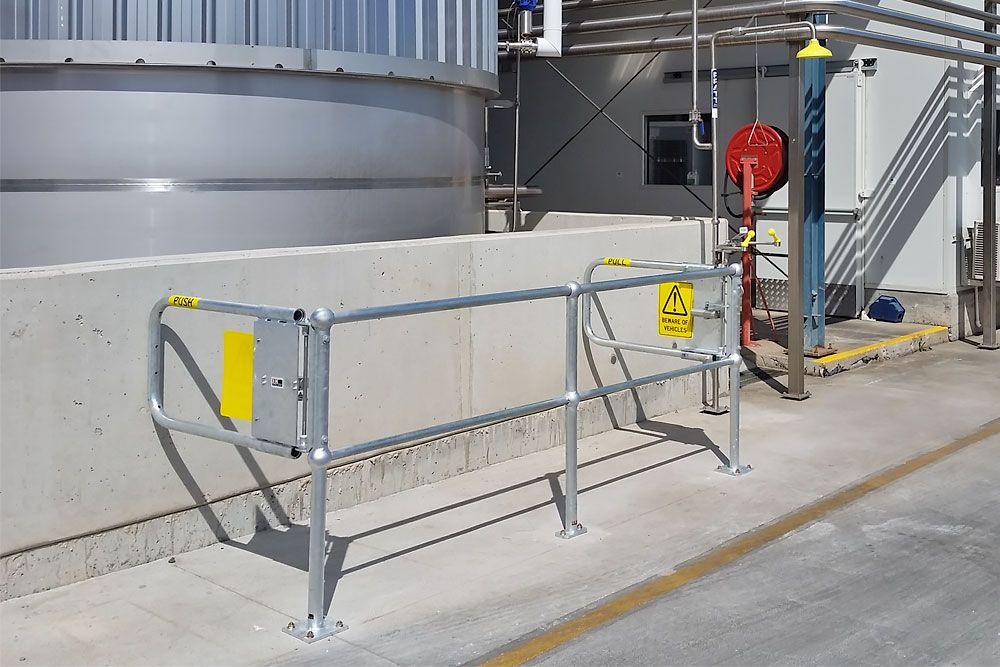

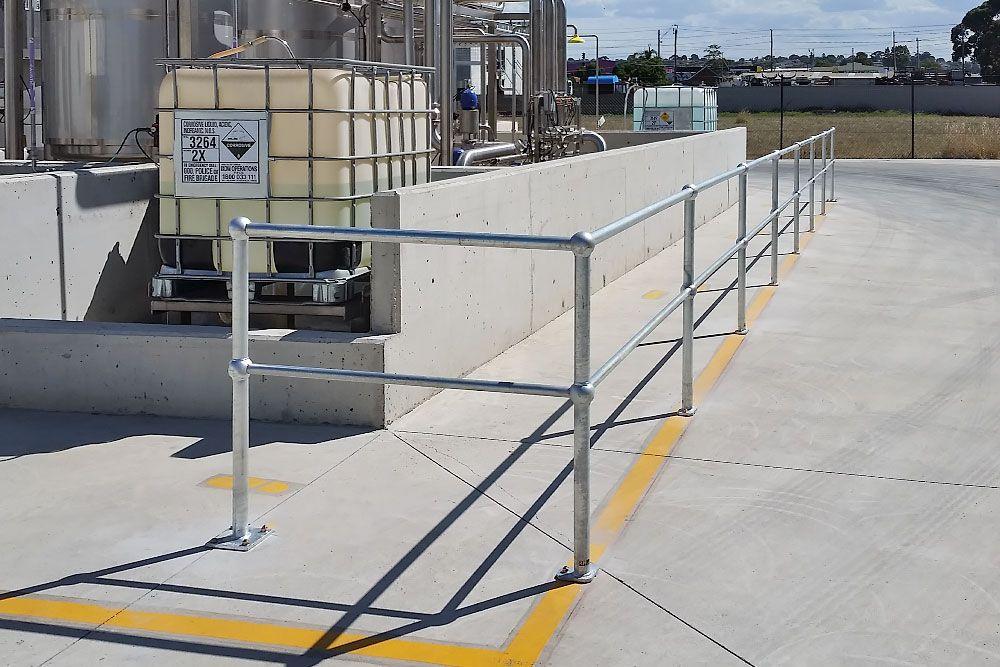

Ball-Fence is a modular industrial handrail system that includes stanchions in a range of configurations, a top (hand) rail and an intermediate (knee) rail. Design flexibility is a strength of the Ball-Fence.
Usually the Ball-Fence components are assembled on site. If required, they can be partially assembled in our factory and delivered to site in sections for simple fixing. (Charges apply).
| Description | Dimensions | Material & Finish | Height | Spacing |

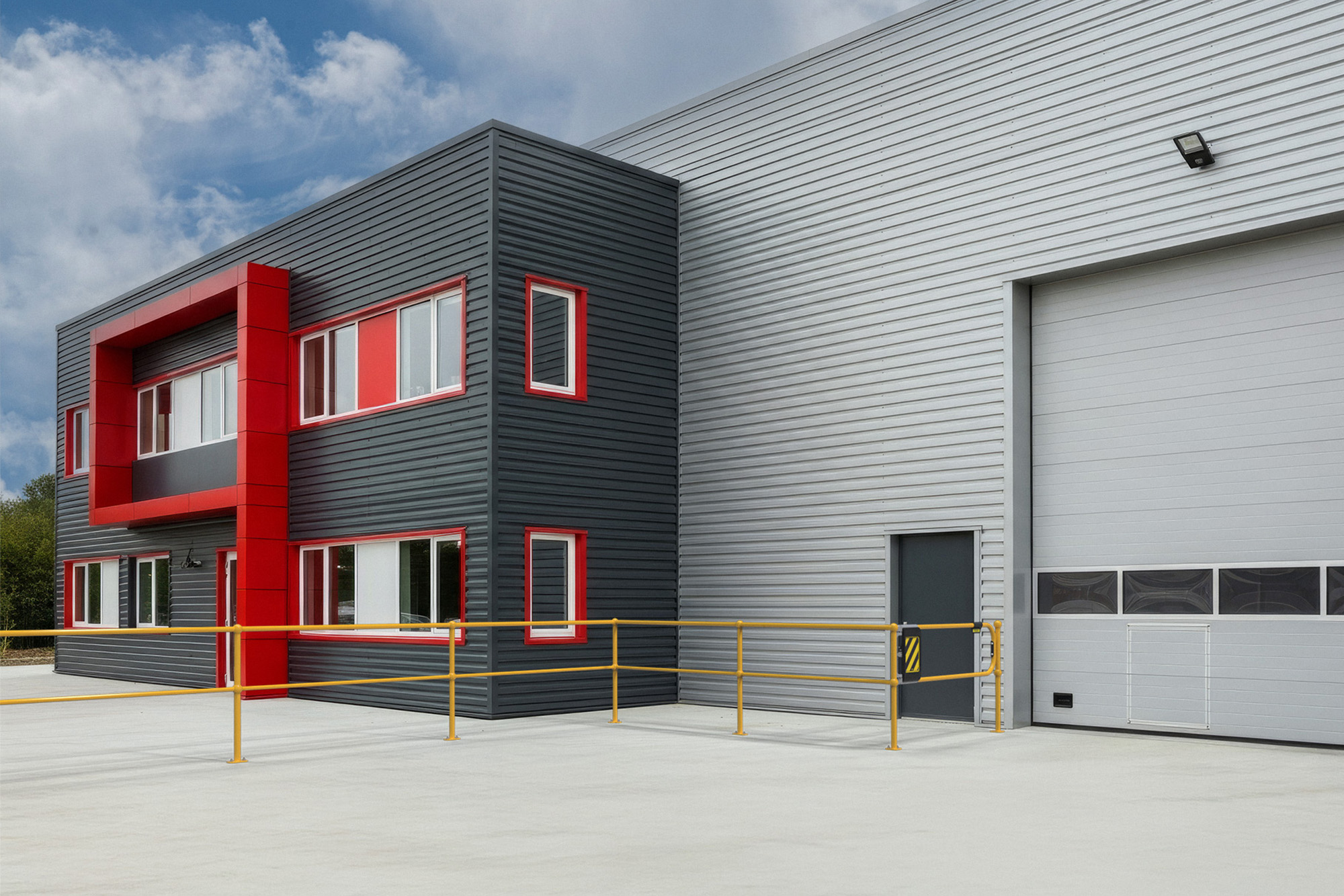

| Tubular handrail system | Post 48.3mm O.D. (40N.B.) Handrail 42.4mm O.D. (32 N.B.) Kneerail 33.7mm O.D. (25 N.B.) | Hot dip galvanised and Galvanised & Powder Coated Safety Yellow. | 1017mm ground to handrail centre. 560mm ground to kneerail centre. | Max post spacing 2 metres centre to centre. |
Posts
| Code | Image | Description |

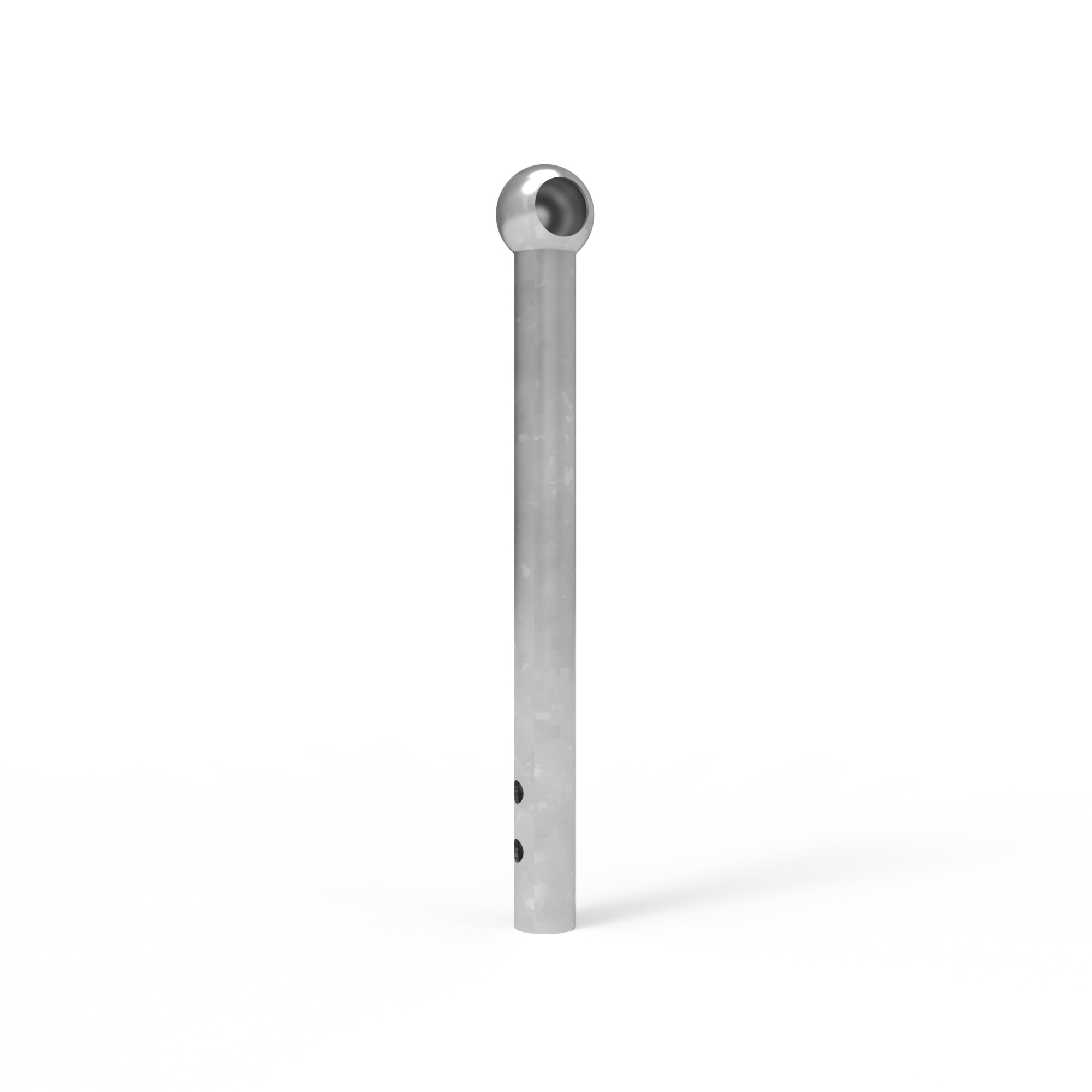

| BFCP-BG |  |
Ball Fence Corner Post Below Ground – Galvanised |

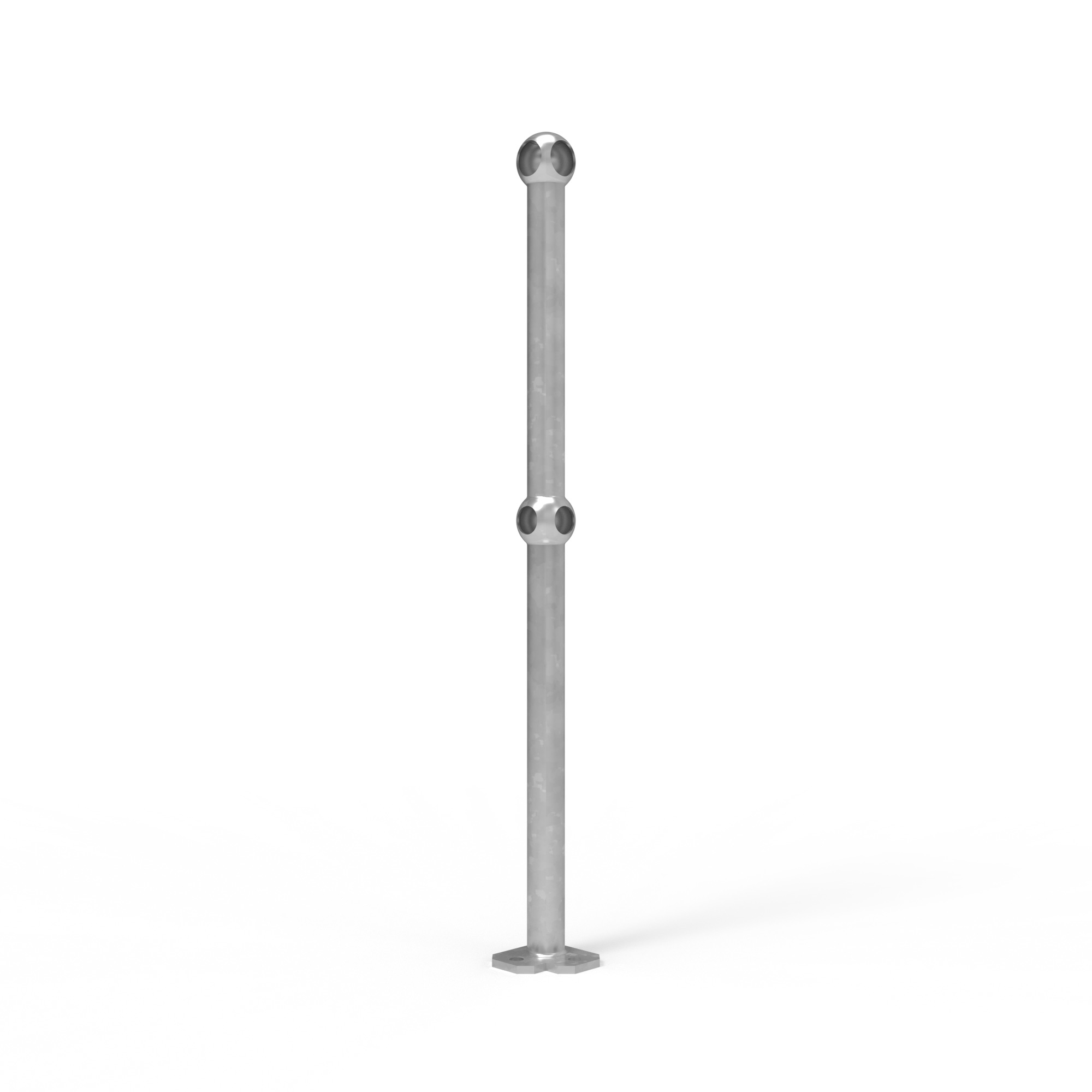

| BFCP-SM |  |
Ball Fence Corner Post Surface Mounted – Galvanised |

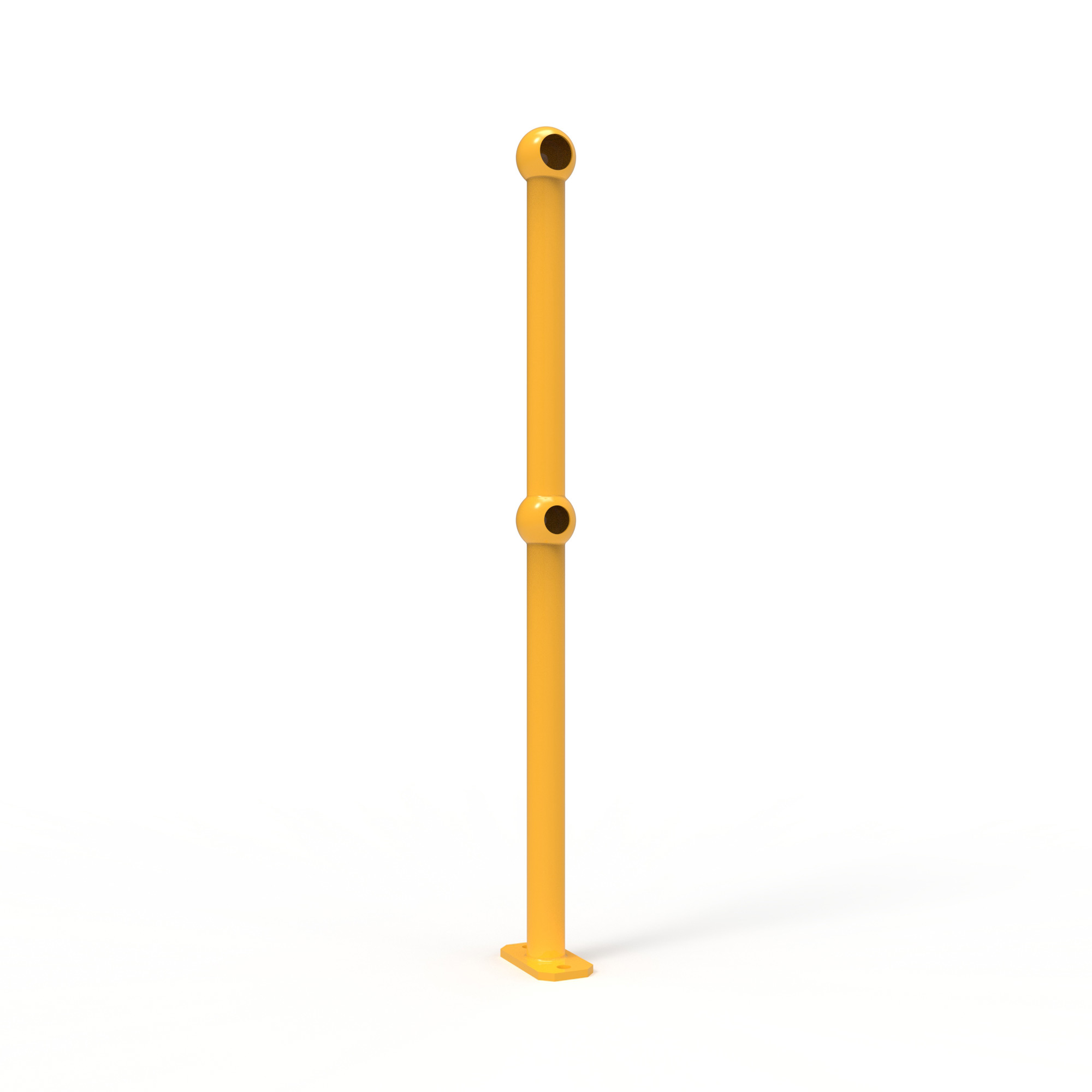

| BFCP-SMY |  |

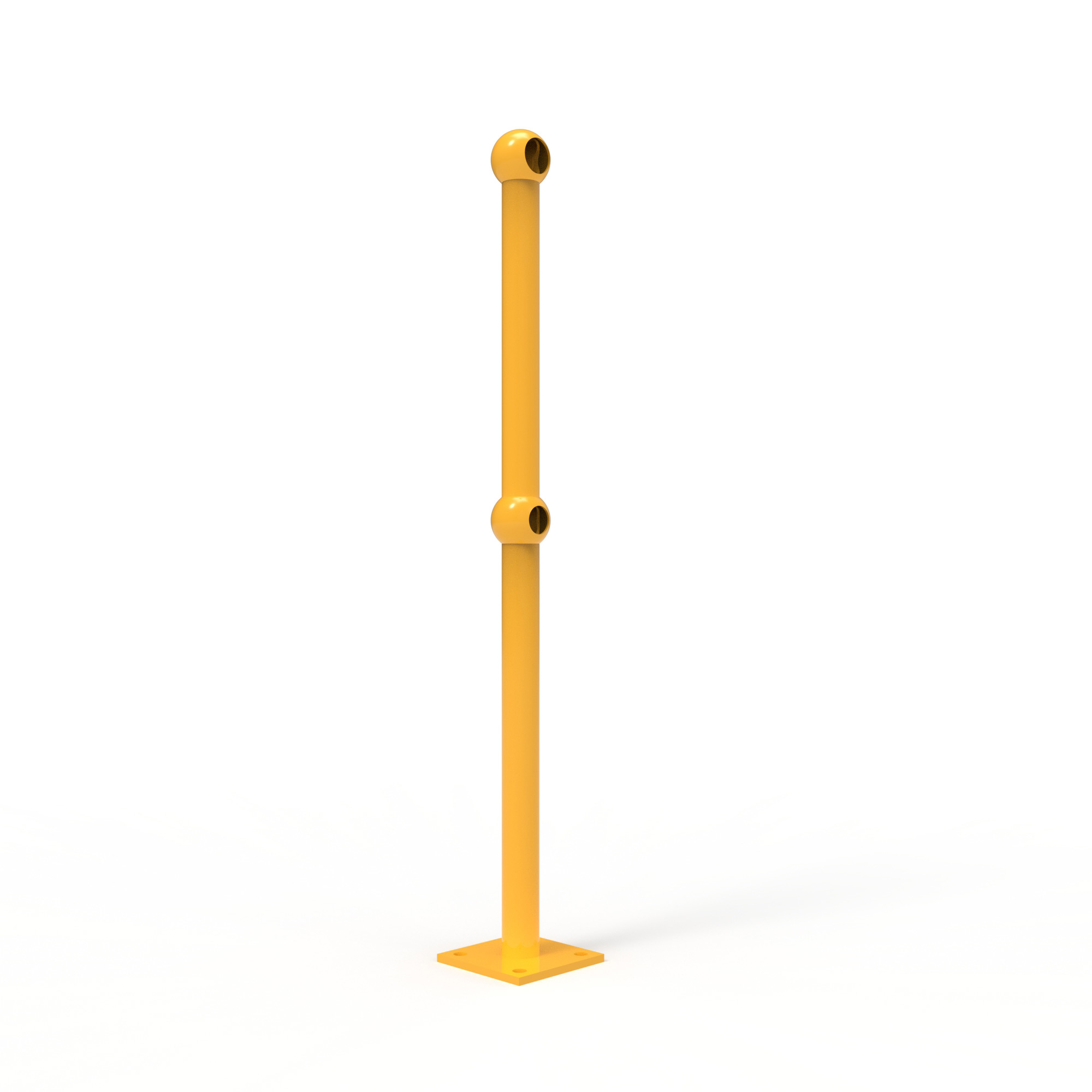

Ball Fence Corner Post Surface Mounted – Powder-Coated |

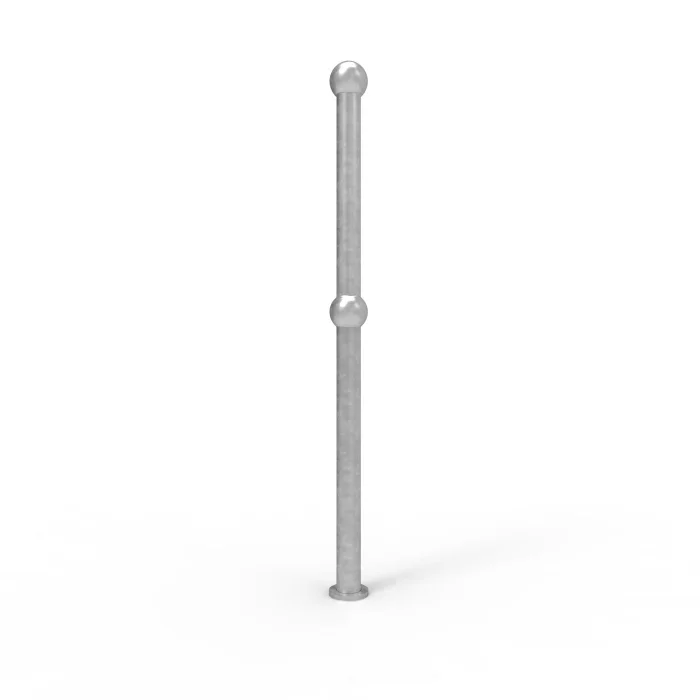

| BFEP-BG |  |
Ball Fence End Post Below Ground – Galvanised |
| BFEP-WB |  |
Ball Fence End Post for W Beam – Galvanised |
| BFEP-SM |  |
Ball Fence End Post Surface Mounted – Galvanised |
| BFEP-SMY |  |
Ball Fence End Post Surface Mounted – Powder-Coated |
| BFGPWB-SM |  |
Ball Fence Gate Post For W-Beam Surface Mounted – Galvanised |

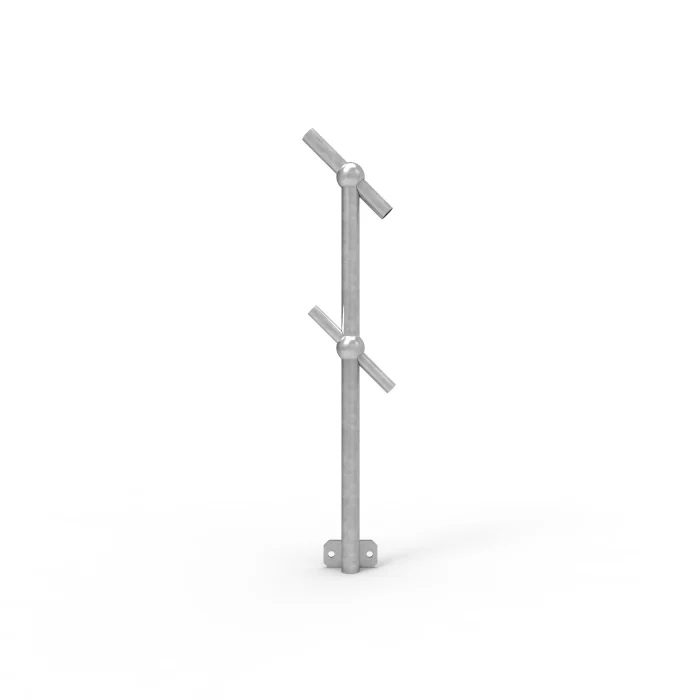

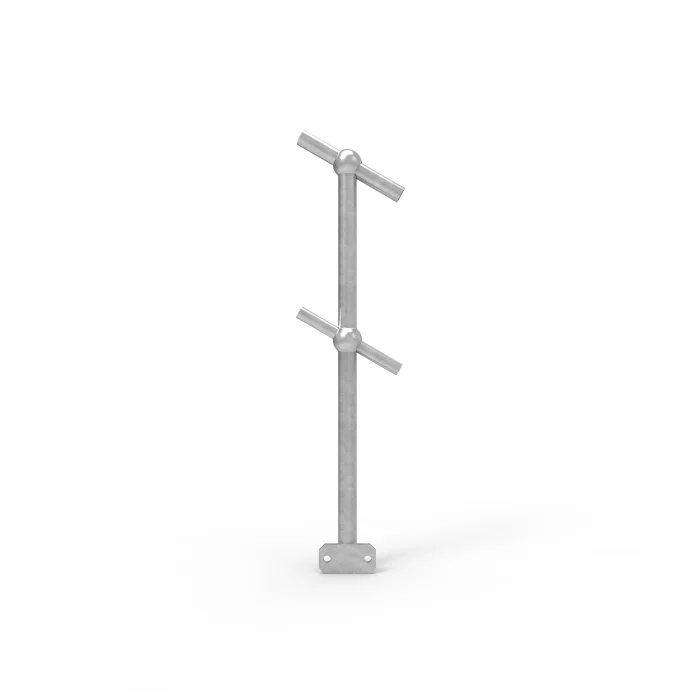

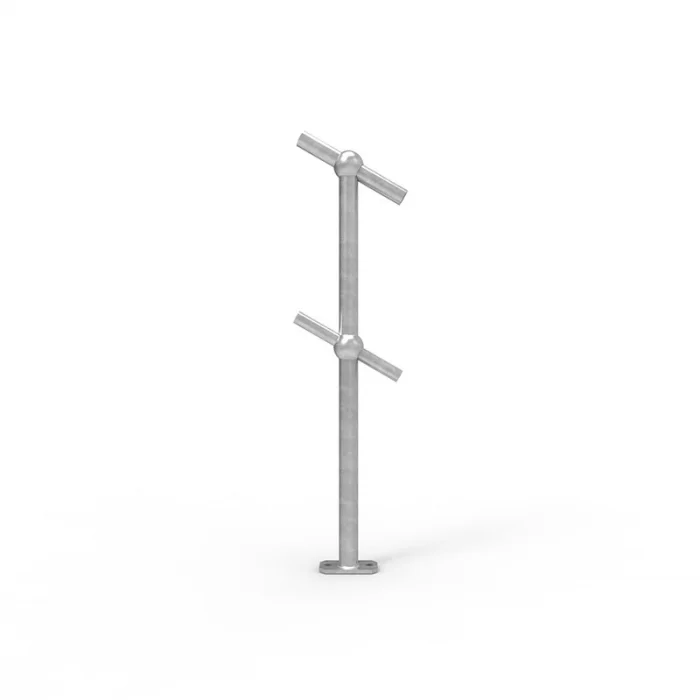

| BFTP-S90 |  |
Ball Fence Through Post – Side Mount – Galvanised |
| BFTP-SM30 |  |
Ball Fence Through Post 30 Degree – Surface Mounted – Galvanised |
| BFTP-S30L |  |
Ball Fence Through Post 30 Degree Side Mount – Left – Galvanised |
| BFTP-S30R |  |
Ball Fence Through Post 30 Degree Side Mount – Right – Galvanised |
| BFTP-S45L |  |
Ball Fence Through Post 45 Degree Side Mount – Left – Galvanised |
| BFTP-S45R |  |
Ball Fence Through Post 45 Degree Side Mount – Right – Galvanised |
| BFTP-SM45 |  |
Ball Fence Through Post 45 Degree Surface Mounted – Galvanised |

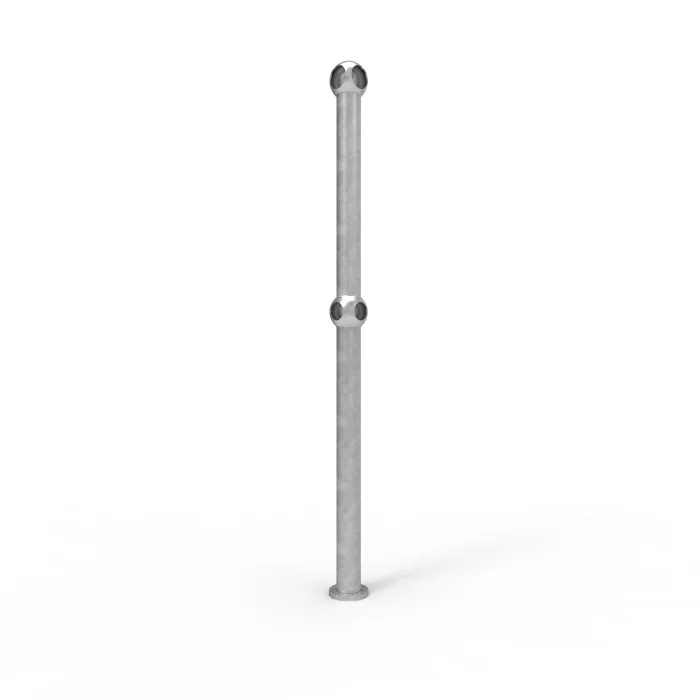

| BFTP-BG |  |
Ball Fence Through Post Below Ground – Galvanised |
| BFTP-SM |  |
Ball Fence Through Post Surface Mounted – Galvanised |

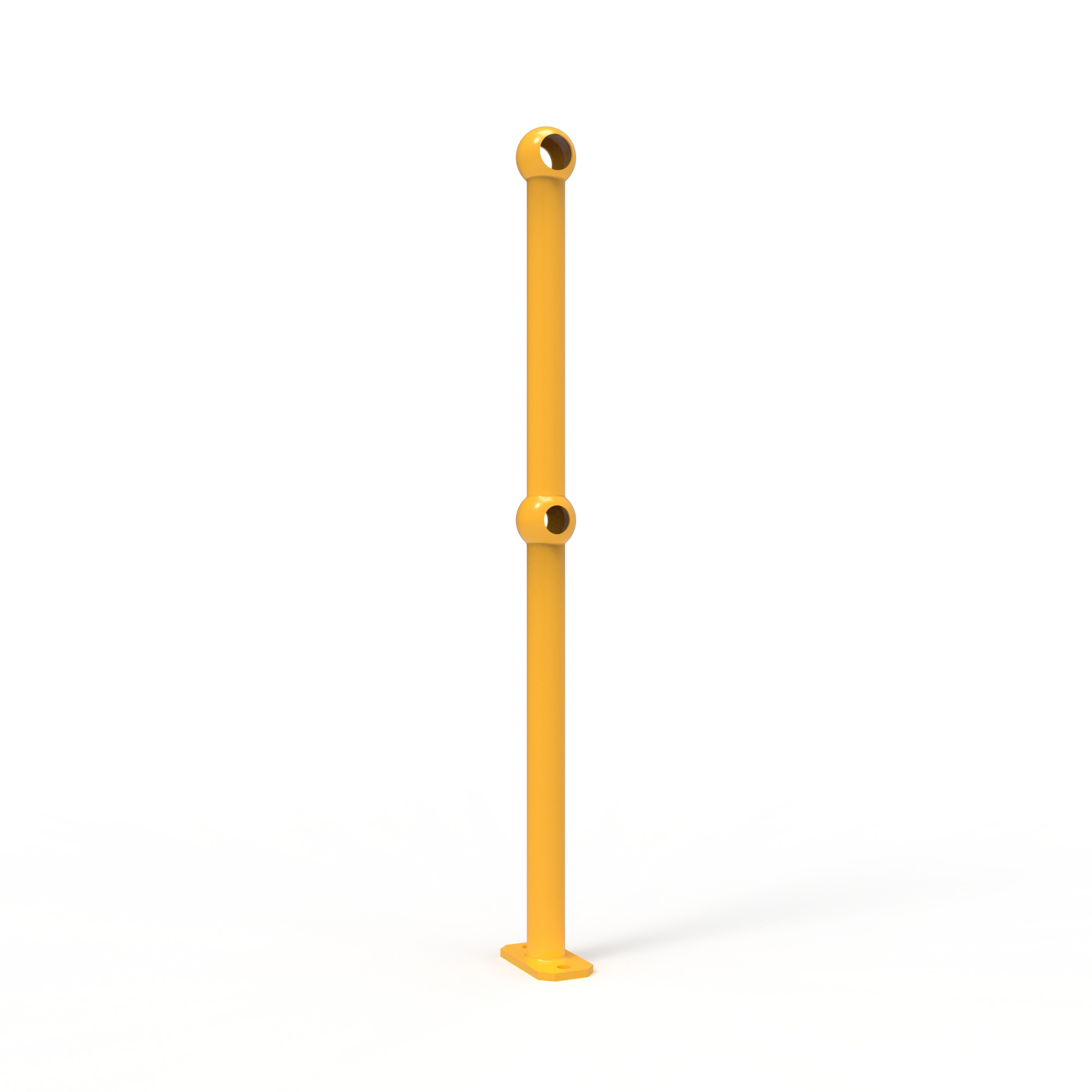

| BFTP-SMY |  |
Ball Fence Through Post Surface Mounted – Powder-Coated |
Bends
| Code | Image | Description |
| BFCB30 |  |
Ball Fence Closure Bend 30 Degree – Galvanised |
| BFCB45 |  |
Ball Fence Closure Bend 45 Degree – Galvanised |
| BFB32-45 |  |
Ball Fence Handrail Bend 32NB 45 Degree – Galvanised |

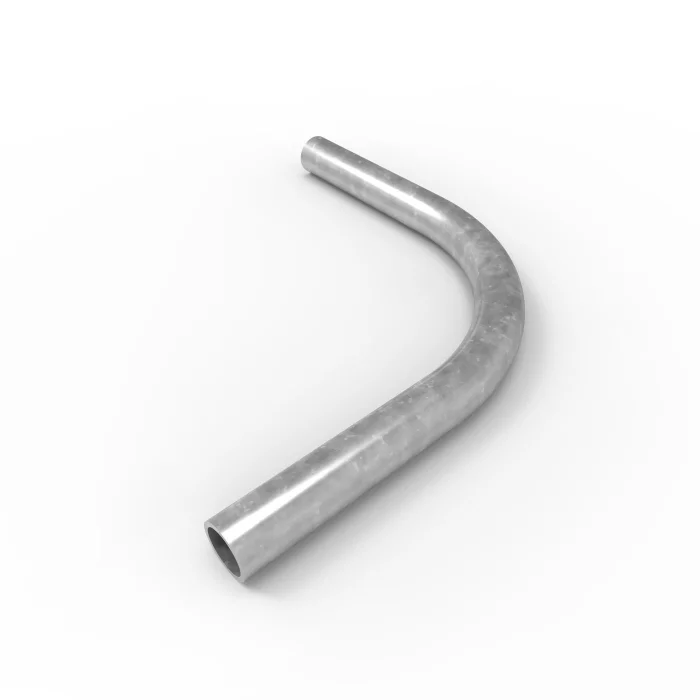

| BFB32 |  |
Ball Fence Handrail Bend 32NB 90 Degree – Galvanised |
| BFB25-45 |  |
Ball Fence Kneerail Bend 25NB 45 Degree – Galvanised |
| BFB25 |  |
Ball Fence Kneerail Bend 25NB 90 Degree – Galvanised |
Bends
| Code | Image | Description |

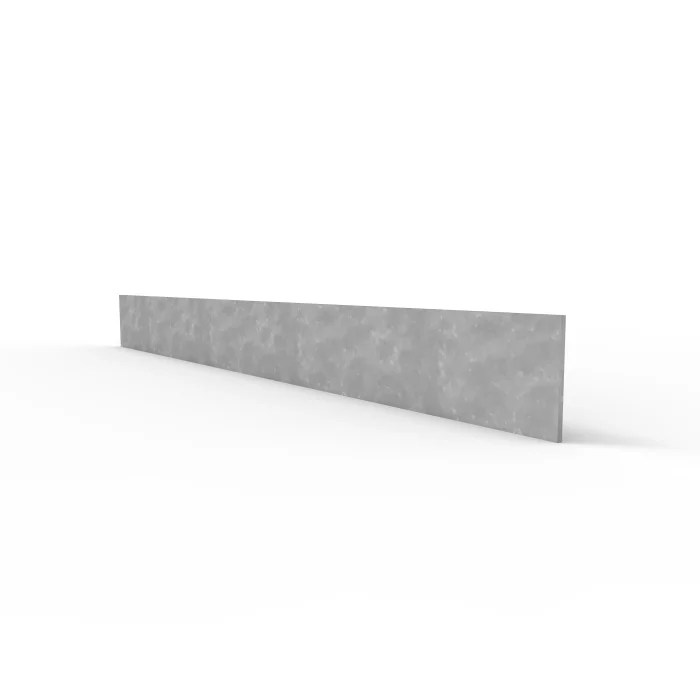

| BFTB-G |  |
Ball Fence Toe Board 100 x 6mm x 6m – Galvanised |
| BFTBCC-G |  |
Ball Fence Toe Board Corner Clamp – Galvanised |
| BFTBSC-G |  |

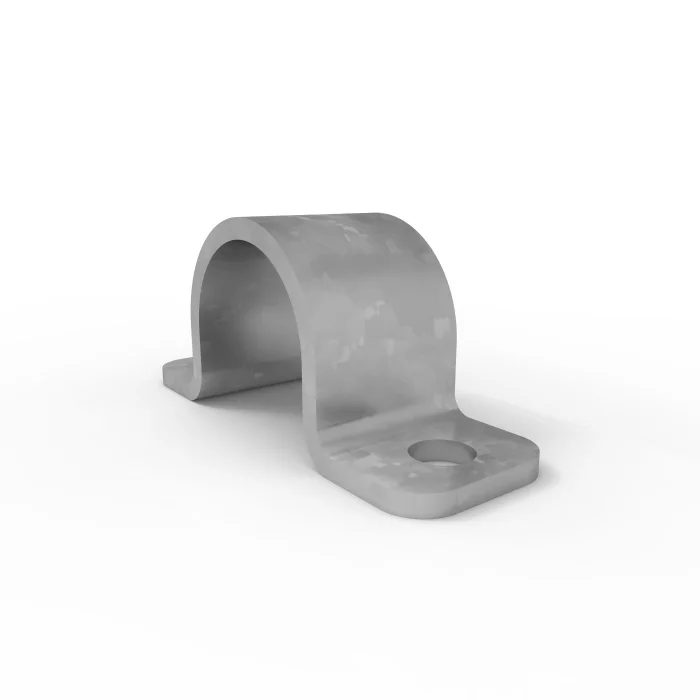

Ball Fence Toe Board Saddle Clamp – Galvanised |
Toe Board Compatibility Chart
| Clamp | ER Railing | PR Railing | Image | Material |
| TBC48-A | – | – | Yes | Yes |
| TBC63-A | Yes | Yes | Yes | – |
| TBC90-A | Yes | Yes | – | – |
** If using the aluminium toe board range.
Accessories
| Code | Image | Description |

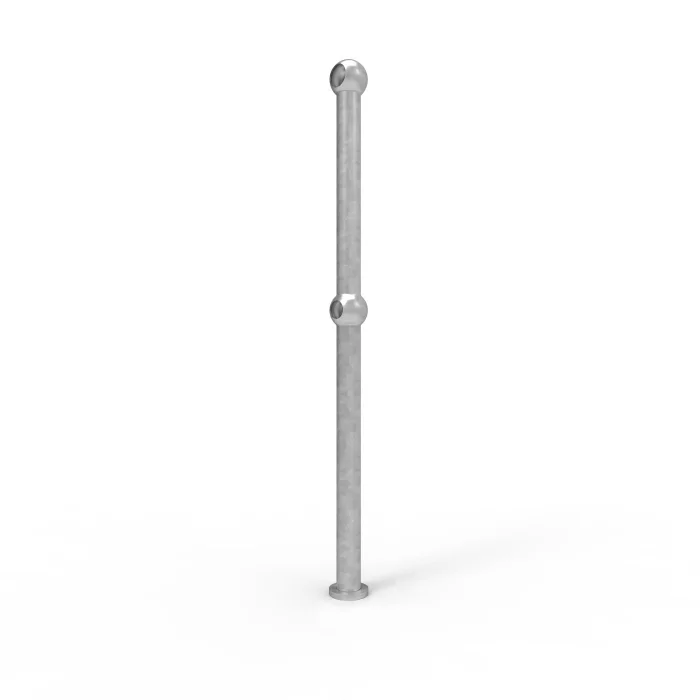

| BFTP-AF |  |
Ball Fence Adjustable Foot – Inline – Galvanised |
| BFEP-WB | |
Ball Fence End Post for W Beam – Galvanised |
| BFEP-WBY |  |

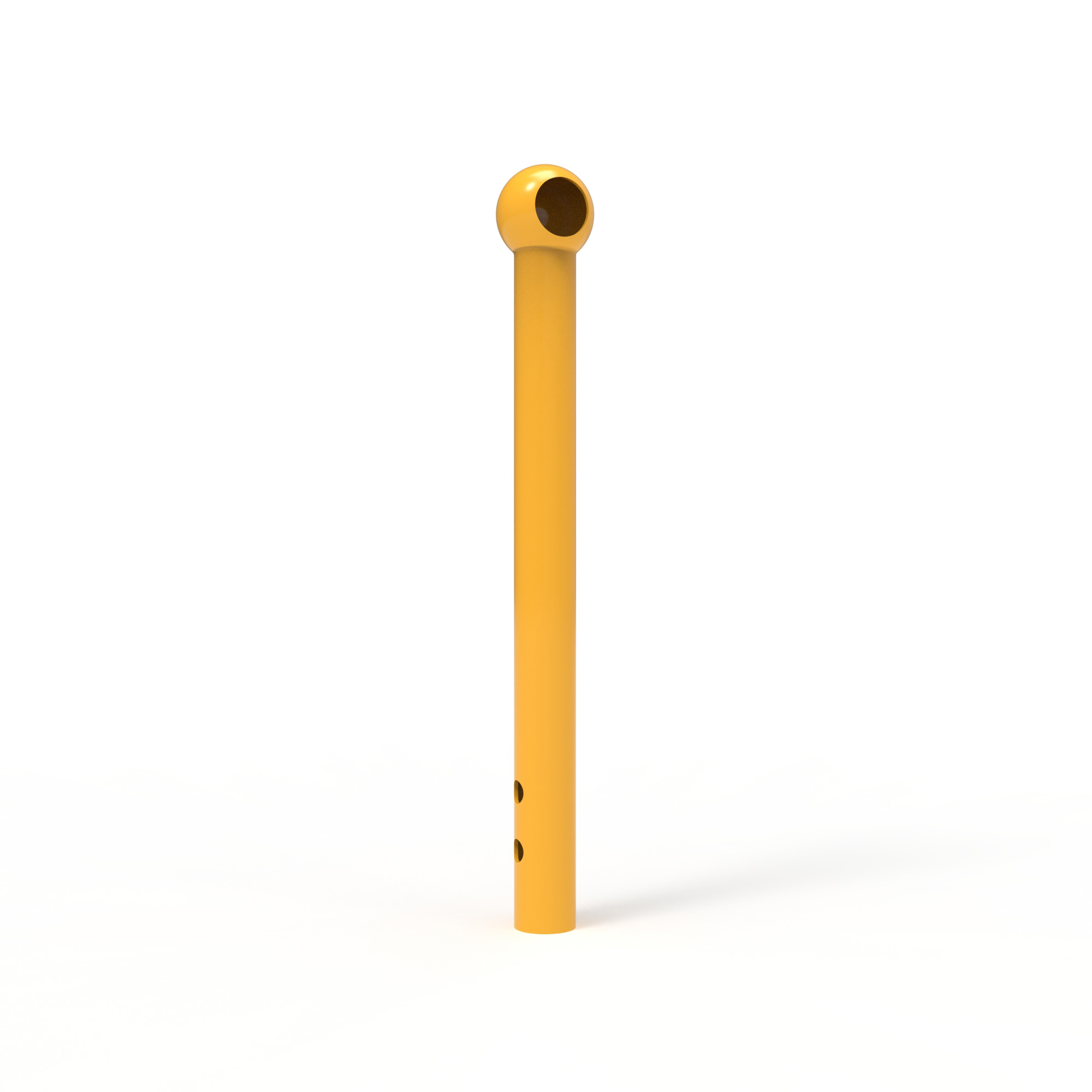

Ball Fence End Post for W Beam – Powder Coated |
| BFGPWB-SM | |
Ball Fence Gate Post For W-Beam Surface Mounted – Galvanised |
| BFGPWB-SMY |  |
Ball Fence Gate Post For W-Beam Surface Mounted – Powder-Coated |

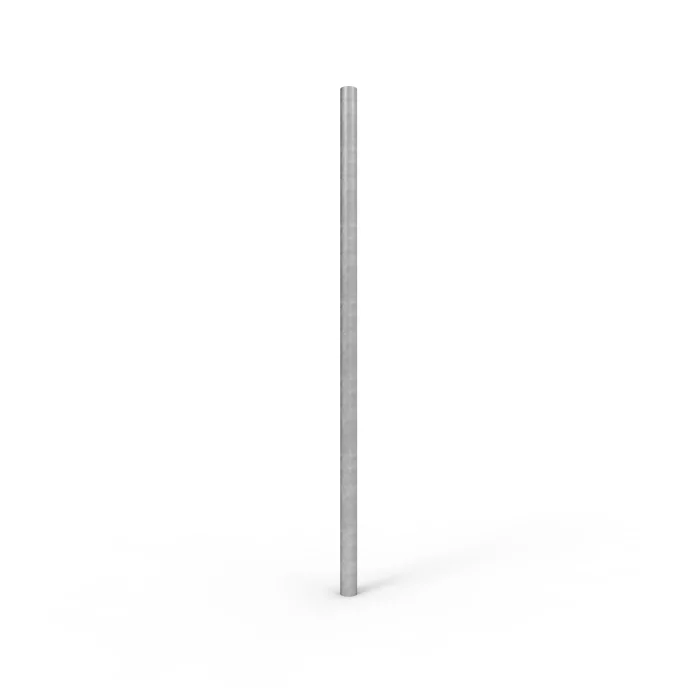

| BFKR |  |
Ball Fence Kneerail 25NB per metre – Galvanised |

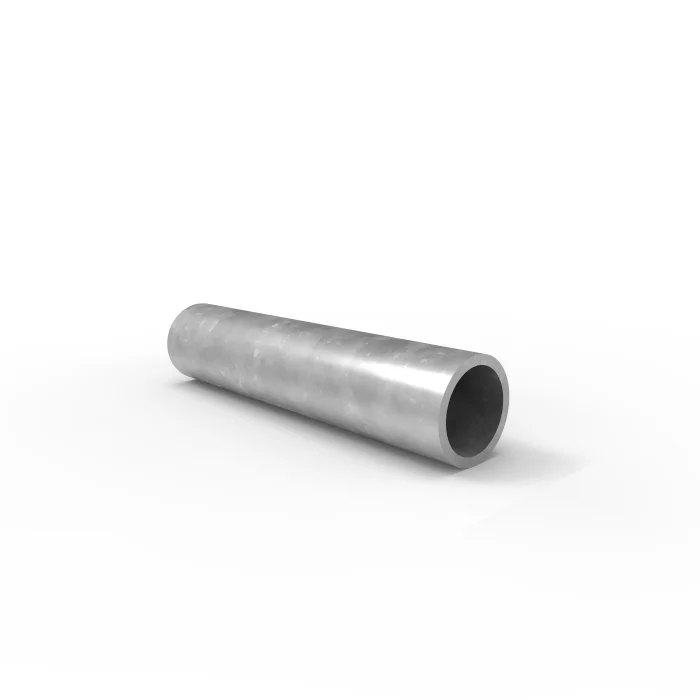

| BFSJ25 |  |
Ball Fence Slip Joint to Suit 25NB Kneerail – Galvanised |
| BFSJ32 |  |
Ball Fence Slip Joint to Suit 32NB Handrail – Galvanised |
| BFTP-WB |  |
Ball Fence Through Post for W Beam – Galvanised |
| BFTP-WBY |  |
Ball Fence Through Post for W Beam – Powder-Coated |

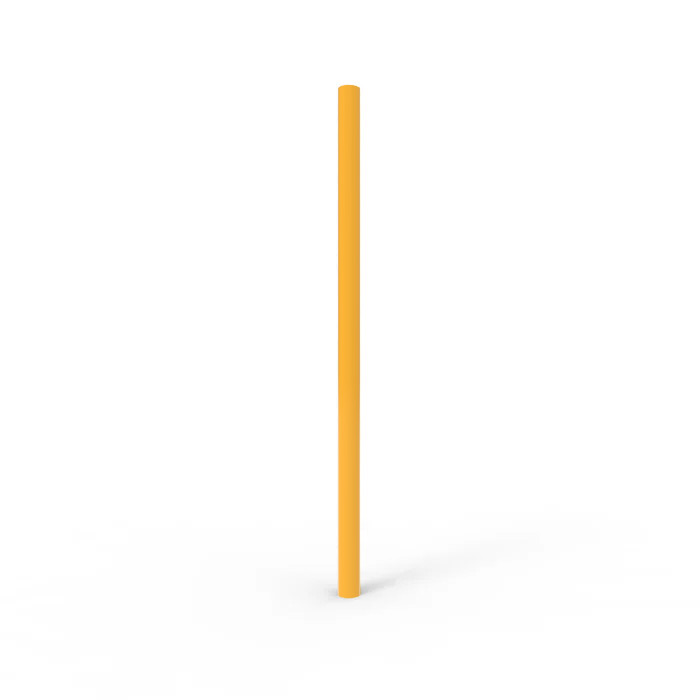

| BFHR-Y |  |
Ball Fence Handrail 32NB per metre – Galvanised and Powder Coated Yellow |
| BFKR-Y |  |
Ball Fence Kneerail 25NB per metre – Galvanised and Powder Coated Yellow |
