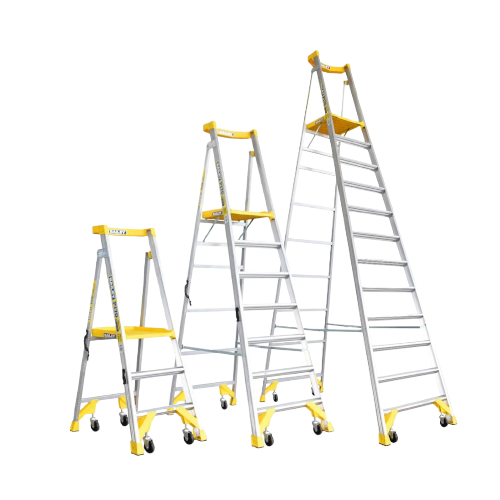

Bailey Platform Ladder Aluminium P170 Job Station 170kg Rated
- Huge platform area (610 x 457mm) adds comfort and stability
- New trapezoidal tread design provides an incredibly strong tread to stile joint
- Multi-function handrail with optional DropLok accessories converts a handrail into a Job Station (15kg capacity)
- Fully reinforced polypropylene platform with metal inserts for maximum strength
- Checker plate deck pattern provides an anti-slip standing area
- Extra strong, heavy-duty aluminium construction for superior durability
- Large anti-slip feet for maximum stability and durability
- Convenient carry handle allows for easy transport
- Swivel castors for improved mobility
- Fully integrated bracing and castor system – patented industry-leading design
- Made to AS/NZS 1892.1
| Model | FS13538 | FS13539 | FS13540 | FS13541 | FS13542 | FS13543 | FS13544 | FS13545 |

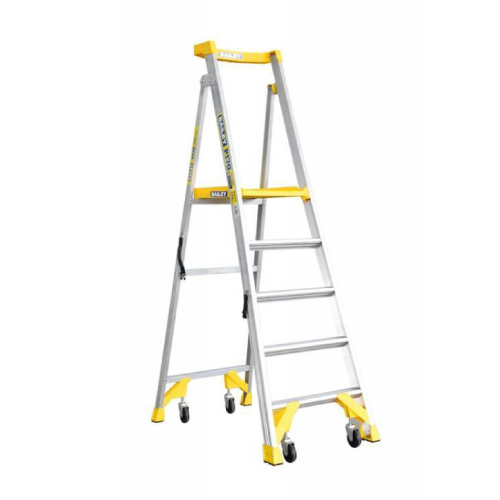

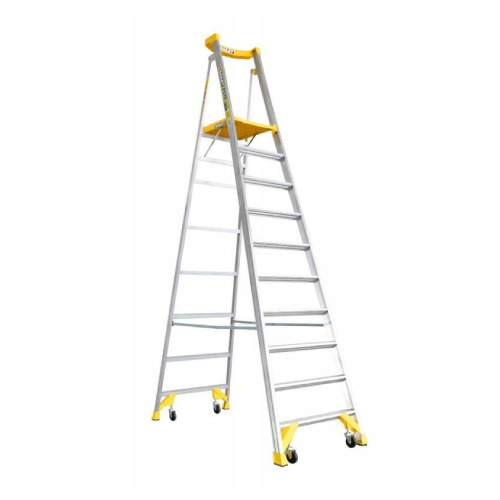

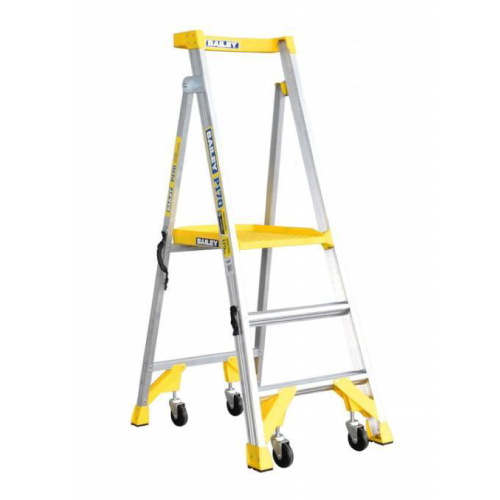

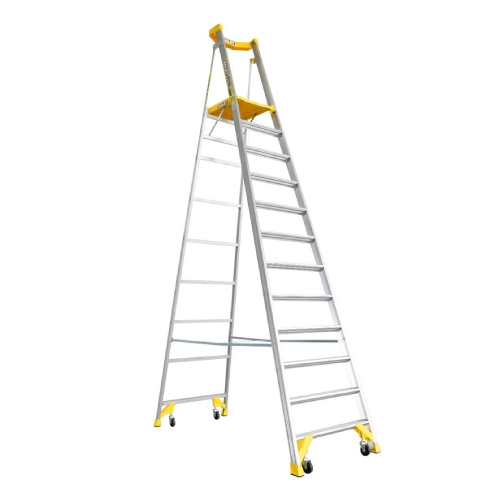

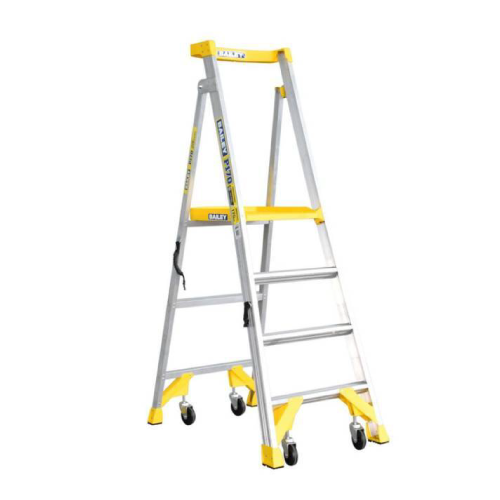

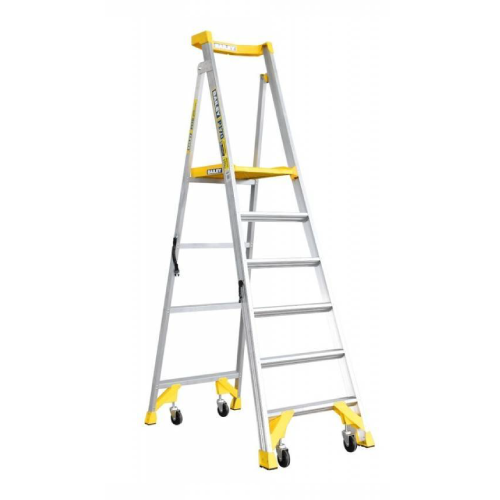

| Description | P170-3 AL Job Station | P170-4 AL Job Station | P170-5 AL Job Station | P170-6 AL Job Station | P170-7 AL Job Station | P170-8 AL Job Station | P170-10 AL Job Station | P170-12 AL Job Station |
| No. of Steps | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Capacity Load | 170 kg | 170 kg | 170 kg | 170 kg | 170 kg | 170 kg | 170 kg | 170 kg |
| Platform Height | 900 mm | 1200 mm | 1500 mm | 1800 mm | 2030 mm | 2320 mm | 2910 mm | 3490 mm |
| Reach Height | 2.87 m | 3.16 m | 3.45 m | 3.74 m | 4.03 m | 4.32 m | 4.91 m | 5.49 m |
| Product Weight | 16.9 kg | 18.4 kg | 19.9 kg | 21.9 kg | 27.4 kg | 28.5 kg | 33.2 kg | 37.6 kg |
| Fully Closed Dimensions | 1944(H) x 702(W) x 274(D) mm | 2247(H) x 731(W) x 274(D) mm | 2549(H) x 765(W) x 274(D) mm | 2852(H) x 803(W) x 274(D) mm | 3156(H) x 856(W) x 274(D) mm | 3459(H) x 889(W) x 274(D) mm | 4066(H) x 956(W) x 274(D) mm | 4674(H) x 1032(W) x 274(D) mm |
| Fully Open Dimensions | 1777(H) x 702(W) x 1003(D) mm | 2068(H) x 731(W) x 1159(D) mm | 2359(H) x 765(W) x 1003(D) mm | 2649(H) x 803(W) x 1471(D) mm | 2940(H) x 856(W) x 1625(D) mm | 3231(H) x 889(W) x 1781(D) mm | 3813(H) x 956(W) x 2093(D) mm | 4395(H) x 1032(W) x 2405(D) mm |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Tray or Work Platform | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Foldable | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
