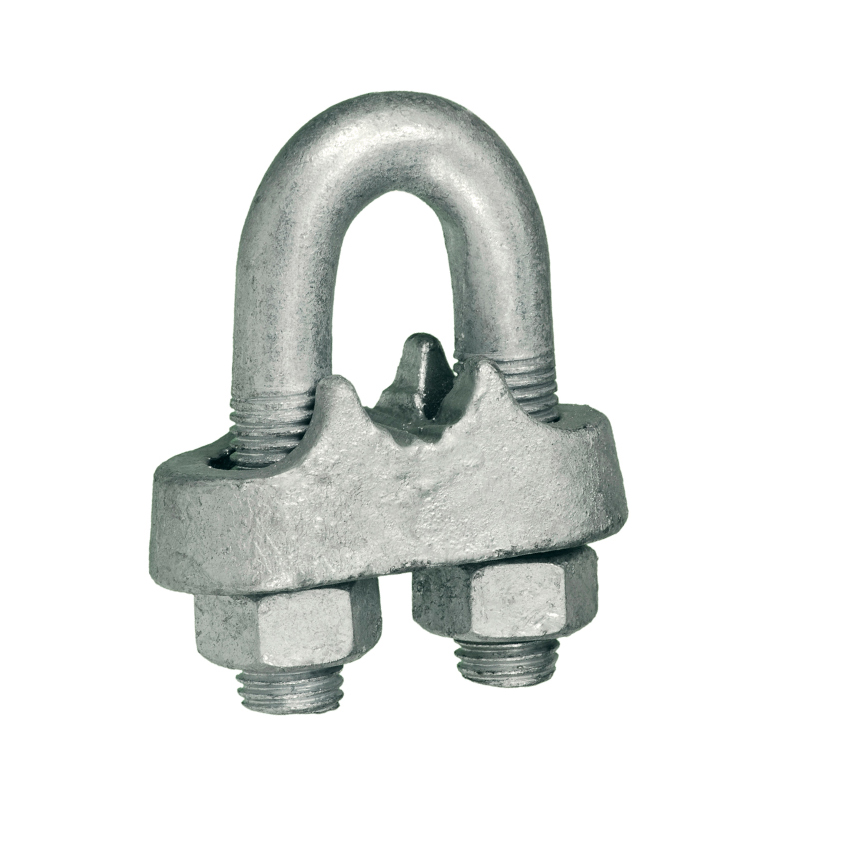

Australian Standard Wire Rope Grip

Australian Standard Wire Rope Grip
Australian Standard Wire Rope Grip - Image 2
  • Conforms to AS2076 and marked with AS and size under saddle.
  • Designed for Austlift wire rope
  • Heavy duty cast steel saddle and hi tensile U-bolt comes with larger nut size for greater tightening force.
  • 6 mm and 8 mm U-bolt with dacromet finish.
  • Sizes available are from 6 mm to 52 mm.
  • Hot dipped galvanised finish on both U-bolt and saddle.

*NOT FOR LIFTING PURPOSES
*PLEASE GO UP A SIZE IF THE WIRE ROPE IS IN BETWEEN SIZES

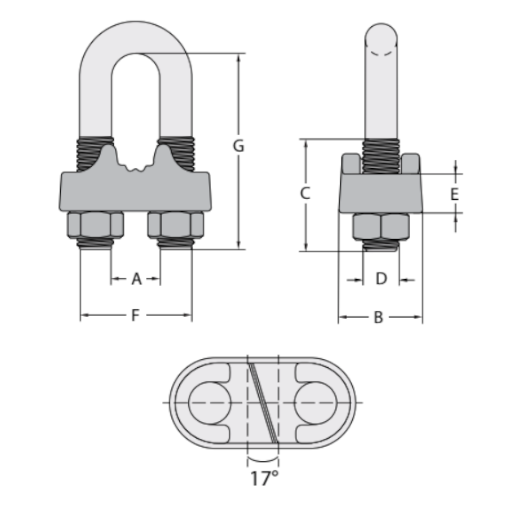

CODE SIZE (mm) Wt. (kg) DIMENSIONS (mm)
A B C D E F G
301506 6 0.04 7 15 20 M6 8 19 26
301508 8 0.069 9 19 22 M8 9 25 32
301510 10 0.12 10 23 27 M10 11 30 40
301512 12 0.132 13 28 32 M12 16 37 51
301514 13-14 0.223 14 32 38 M14 16 42 52
301516 16 0.351 17 32 41 M16 17 49 64
301518 18 0.488 20 38 47 M16 19 52 68
301520 20 0.98 23 46 58 M16 24 55 88
301522 22 1.123 23 46 58 M20 24 63 92
301526 26 1.425 27.5 50 61 M20 25 67.5 96
301528 28 1.56 29.5 50 66 M20 27 69.5 104
301532 32 1.9 33.5 55 70 M20 28 73.5 120
301536 36 1.941 36.5 55 75 M24 30 84.5 131
301540 40 2.07 41.5 55 90 M28 34 97.5 145
301552 52 4.2 54.5 69 103 M32 41 118.5 185
