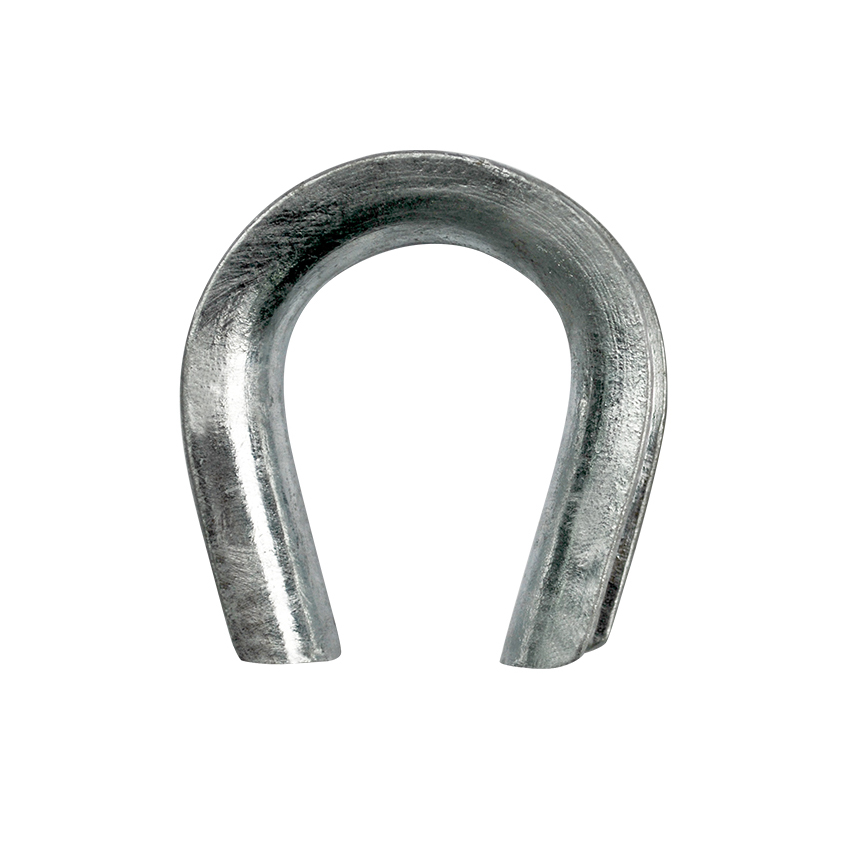

Australian Standard Open Thimble (Half Thimble)
FOR LIFTING PURPOSES
Austlift open type thimbles are for applications where a fitting may be place into the thimble without opening it, and can be closed back to intended form.
- AS thimbles are recommended for lifting applications.
- Conforms to AS1138 and hot dipped galvanised finish.
- Made from heat treated high tensile steel material.
- Sizes available are from 10 mm to 20 mm

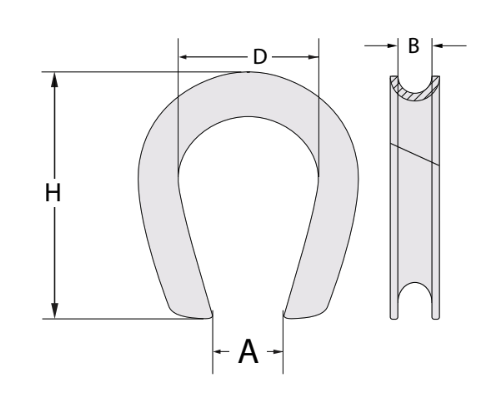

| CODE | SIZE (mm) | MBF (kN) | Wt. (kg) | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|---|
| A | B | D | H | ||||
| 302810 | 10 | 63.1 | 0.09 | 21 | 12 | 30 | 60 |
| 302812 | 12 | 90.8 | 0.13 | 21 | 16 | 37 | 65 |
| 302816 | 16 | 161 | 0.26 | 25 | 20 | 50 | 88 |
| 302820 | 20 | 252 | 0.55 | 25 | 24 | 60 | 90 |
