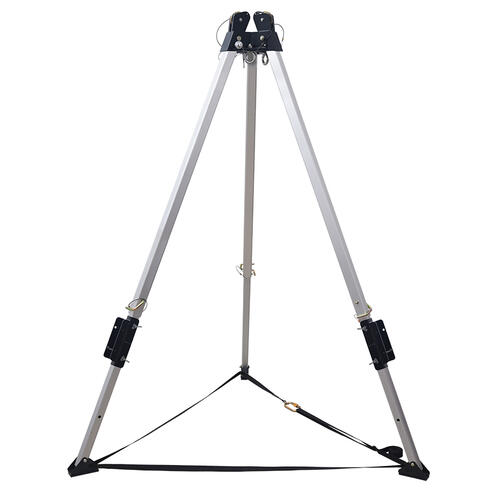

Austlift Tripod

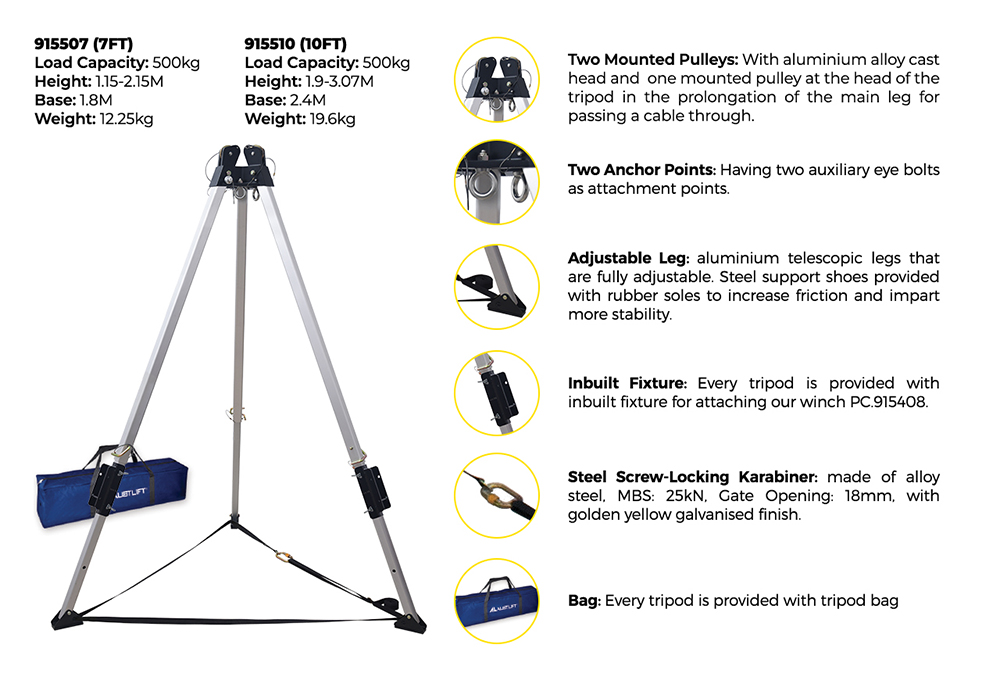

For access into confined spaces. With two mounted pulleys at the head of the tripod in the prolongation of the main leg for passing a cable through. Having two auxiliary eye bolts as attachment points.

With aluminium alloy cast head and aluminium telescopic legs that are fully adjustable. Steel support shoes provided with rubber soles to increase friction and impart more stability. Strength of anchorage point greater than 12 kN.

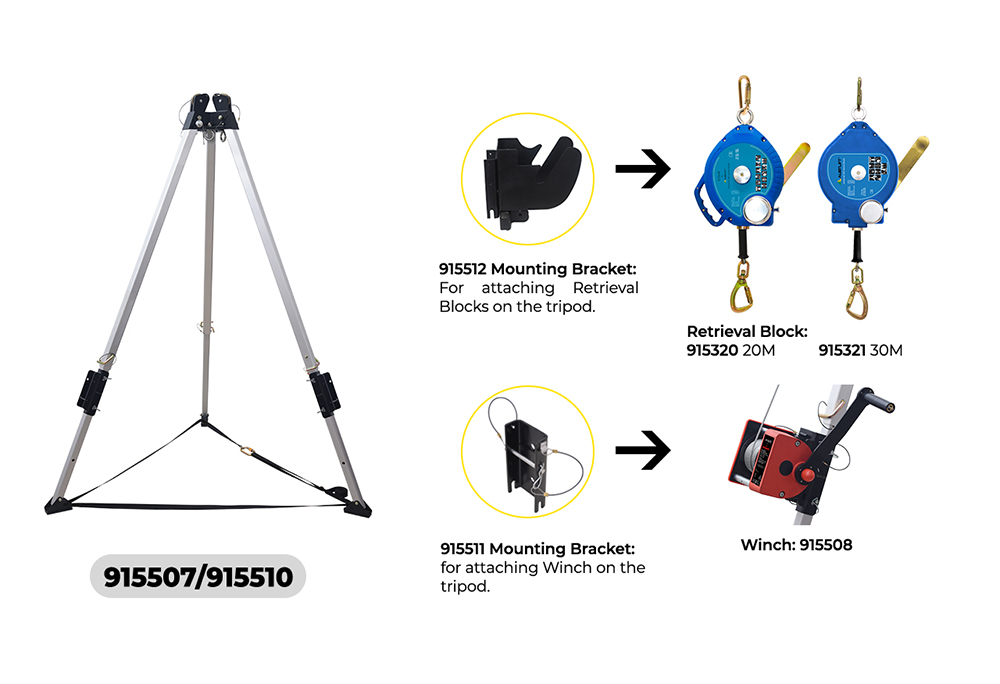

Every tripod is provided with tripod bag. The double pulley tripod is provided with inbuilt fixture for attaching winch PC.915508. AUSTLIFT tripod can also be used with retrieval fall arrester blocks PC.915320, PC.915321 with the help of their specialised mounting brackets respectively. Conforms to AS/NZS 5532:2013

• Wire Rope: 4.5 mm diameter steel wire rope.
• Minimum breaking strength: 12 kN.
• Rated for 140 kg.
• The steel triple-action locking swivel hook: 21 mm gate opening, 23 kN minimum breaking strength.
• The steel triple-action locking karabiner: 22 mm gate opening, 25 kN minimum breaking strength.
