AustLift Lever Blocks L-3 & L-4 Series

AL-3 Lever Block
AustLift Lever Blocks L-3 & L-4 Series - Image 2

AustLift L-3 & L-4 series lever blocks are used for general hoisting in the mining, construction, industrial and domestic situations. Commonly used for short lifts and pulling applications.

  • Standard height of lift 1.5 or 3m except for 250kg which has 1 metre lift. Other lift height available upon request.
  • Robust, durable, portable and compact in construction
  • All lever blocks come with ball bearing swivel hook

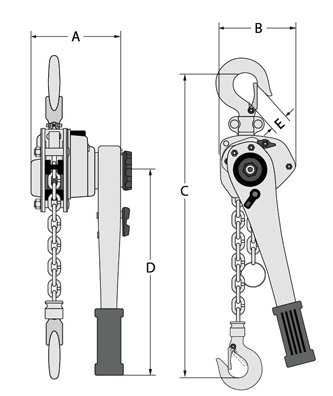

Chain Size Code Lift Length WLL Test Load Effects Required at Capacity NT. No. of Chain Falls Dimensions
Head Room Hook to Hook Handle Hook Opening
m tonne tonne N kg A B C (min.) D E
4 121002 1 0.25 0.38 217 1.85 1 92 75 205 153 17.12
5 121005 1.5 0.5 0.75 303 3.5 1 110 82 260 251 22.25
121305 3
6 121010 1.5 0.8 1.2 140 7 1 152 128 295 256 24.76
121310 3
6 121015 1.5 1 1.5 185 7.2 1 152 128 295 256 24.76
121315 3
7.1 121020 1.5 1.6 2.4 234 11 1 175 148 375 368 32.11
121320 3
121620 6
10 121025 1.5 3.2 4.8 363 20 1 195 181 450 368 42.16
121325 3
121625 6
10 121030 1.5 6.3 9.45 370 28 2 195 232 542 368 44.6
121330 3
10 121035 1.5 9 13.5 375 43 3 366 195 645 368 42.2
121335 3



L-4 Series (specially designed with overload protection)

Chain Size Code Lift Length WLL Test Load Effects Required at Capacity NT. No. of Chain Falls Dimensions
Head Room Hook to Hook Handle Hook Opening
m tonne tonne N kg A B C (min.) D E
6 121107 1.5 0.8 1.2 140 7 1 152 128 295 256 24.76
121207 3
6 121111 1.5 1 1.5 185 7.2 1 152 128 295 256 24.76
121211 3
7.1 121115 1.5 1.6 2.4 234 11 1 175 148 335 368 32.11
121215 6
10 121130 1.5 3.2 4.8 363 20 1 195 181 450 368 42.16
121230 3
10 121160 1.5 6.3 9.45 370 28 2 195 232 542 368 44.6
121260 3
10 121190 1.5 9 13.5 375 43 3 366 195 645 368 52.2
121290 3
