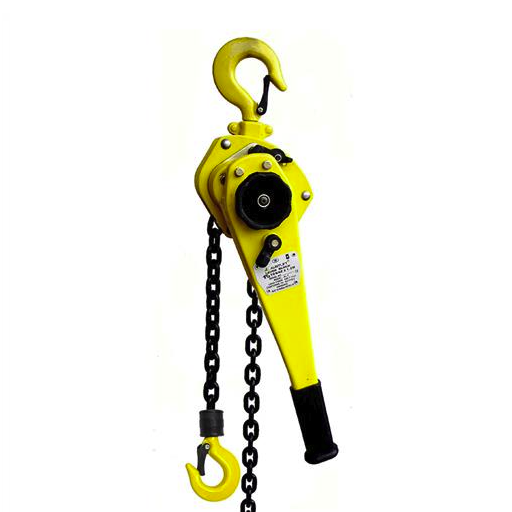

AustLift Lever Blocks L-3
AustLift L-3 series lever blocks are used for general hoisting in the mining, construction, industrial and domestic situations. Commonly used for short lifts and pulling applications
-
- Standard height of lift 1.5 or 3m except for 250kg which has 1 metre lift. Other lift height available upon request.
- Robust, durable, portable and compact in construction
- All lever blocks come with ball bearing swivel hook
|
Chain Size
|
Code
|
Lift Length
|
WLL
|
Test Load
|
Effects Required at Capacity
|
NT.
|
No. of Chain Falls
|

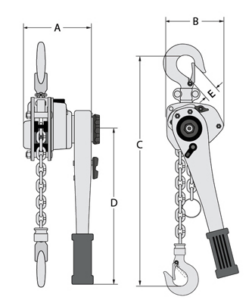

Dimensions | ||||
| Head Room | Hook to Hook | Handle | Hook Opening | |||||||||
| m | tonne | tonne | N | kg | A | B | C (min.) | D | E | |||
| 4 | 121002 | 1 | 0.25 | 0.38 | 217 | 1.85 | 1 | 92 | 75 | 205 | 153 | 17.12 |
|
5
|
121005 | 1.5 |
0.5
|
0.75
|
303
|
3.5
|
1
|
110
|
82
|
260
|
251
|
22.25
|
| 121305 | 3 | |||||||||||
|
6
|
121010 | 1.5 |
0.8
|
1.2
|
140
|
7
|
1
|
152
|
128
|
295
|
256
|
24.76
|
| 121310 | 3 | |||||||||||
|
6
|
121015 | 1.5 |
1
|
1.5
|
185
|
7.2
|
1
|
152
|
128
|
295
|
256
|
24.76
|
| 121315 | 3 | |||||||||||
|
7.1
|
121020 | 1.5 |
1.6
|
2.4
|
234
|
11
|
1
|
175
|
148
|
375
|
368
|
32.11
|
| 121320 | 3 | |||||||||||
| 121620 | 6 | |||||||||||
|
10
|
121025 | 1.5 |
3.2
|
4.8
|
363
|
20
|
1
|
195
|
181
|
450
|
368
|
42.16
|
| 121325 | 3 | |||||||||||
| 121625 | 6 | |||||||||||
|
10
|
121030 | 1.5 |
6.3
|
9.45
|
370
|
28
|
2
|
195
|
232
|
542
|
368
|
44.6
|
| 121330 | 3 | |||||||||||
|
10
|
121035 | 1.5 |
9
|
13.5
|
375
|
43
|
3
|
366
|
195
|
645
|
368
|
42.2
|
| 121335 | 3 | |||||||||||
