Austlift Cantilever Davit System – 915400

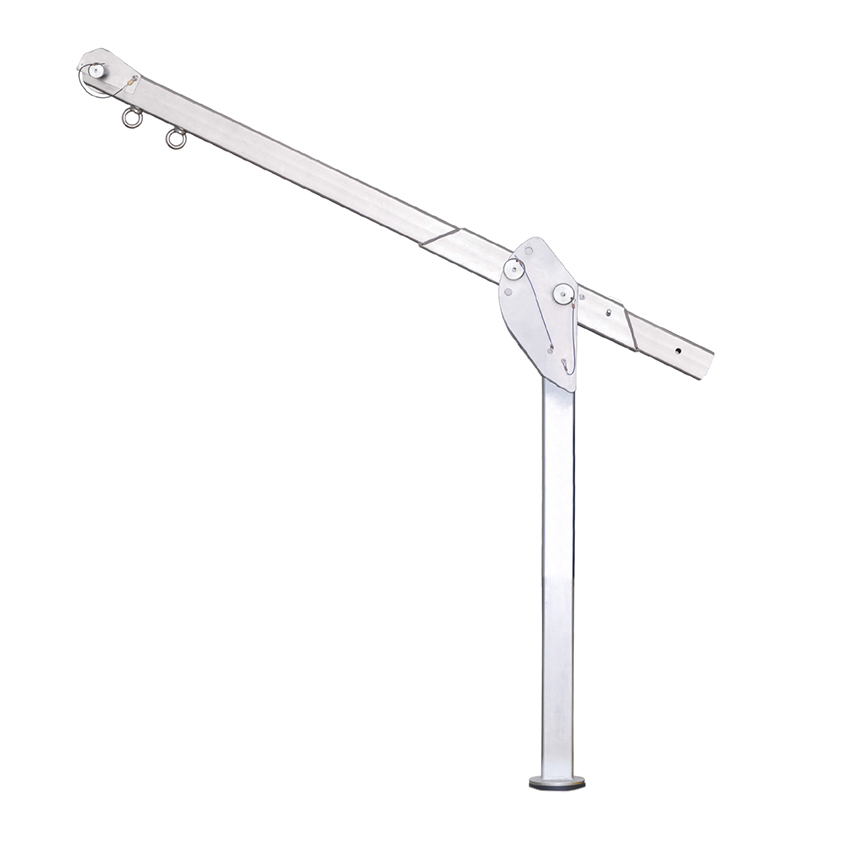

AUSTLIFT introduces the cantilever davit system which provides a safe and sure system for easy access to confined spaces. The davit system is an ideal choice to provide overhead anchorage which can be mounted on different bases. The davit system is made of highly corrosion resistant G316 stainless steel, and can swivel a complete 360° on its mounted base, hence providing versatile reach and access.

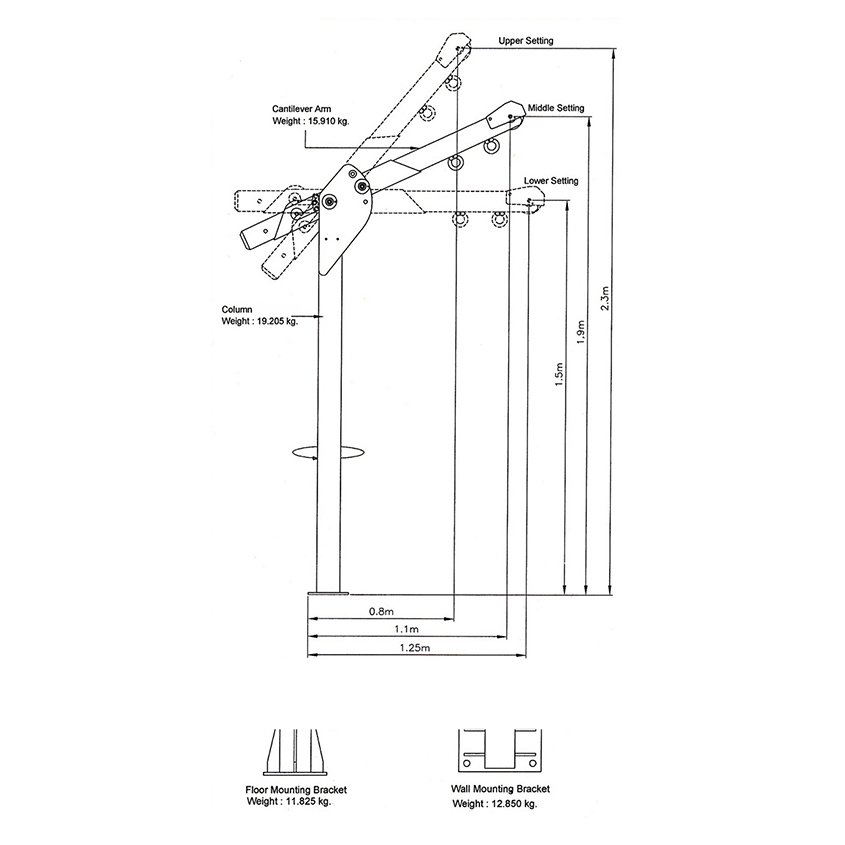

The unique feature is that the height of the cantilever arm of the davit system is adjustable at 3 defined points, with upper height adjustment of 2.3 m, middle arm adjustment of 1.9 m, and lowered arm adjustment at 1.5 m. This enables the use of the davit system even in those ares where the roof height is low.

The davit system can be easily mounted on the floor as well as on the wall through special floor and wall mounting brackets which are made available as per requirement. The davit system can also be mounted on the floor of heavy vehicles, hence making it extremely versatile in use.

Conforms to AS/NZS 5532:2013

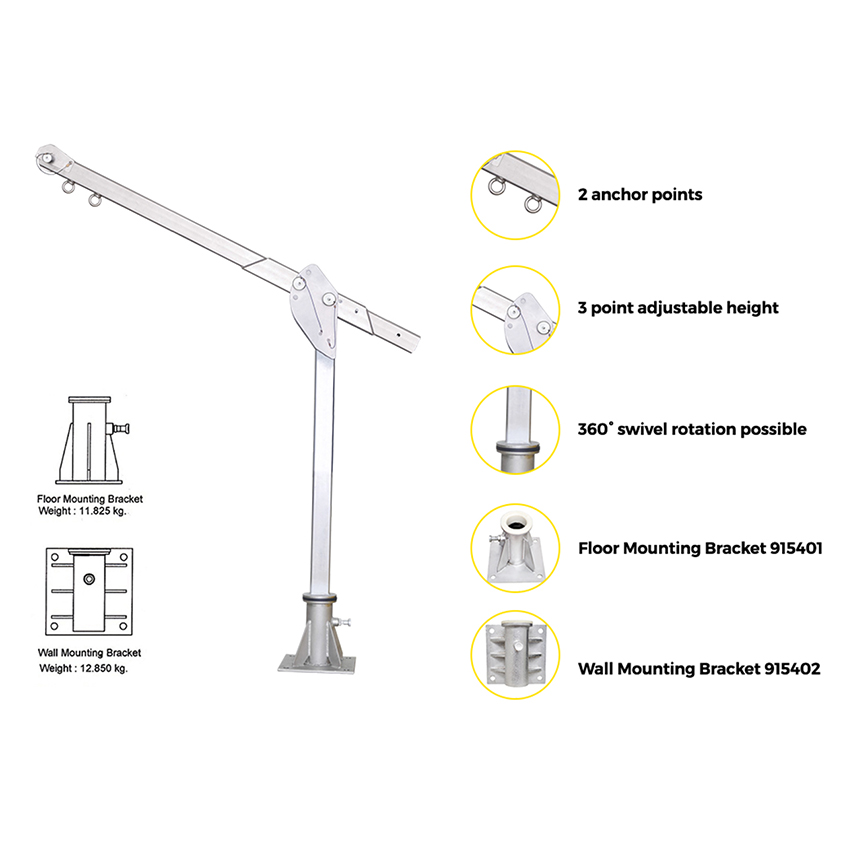

• 3 point adjustable height
• 2 anchor points
• 360° swivel rotation possible

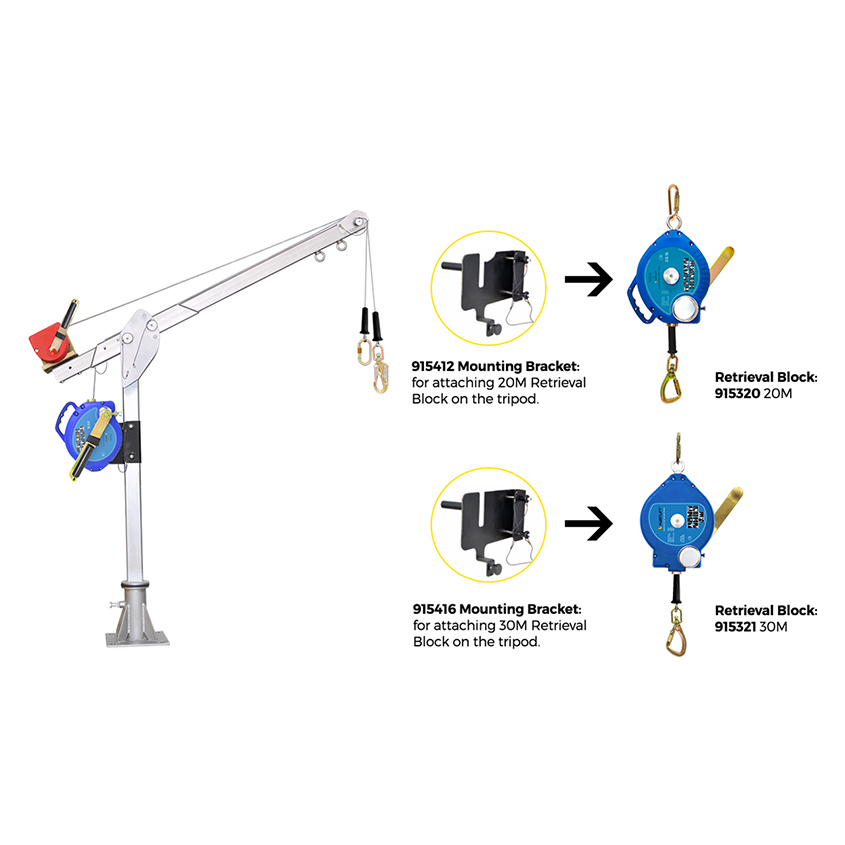

• Easy to attach optional Personnel and materials Winch, and Retrieval Fall Arrester Block

Vital Test Compliance

• Static Strength: 15 kN for 3 min
• Dynamic Strength: fall with 100 kg, it should be stable and hold clear from the ground
• Integrity test: after dynamic strength sustained 300 kg, mass for 3 min.

Physical Parameters

• Made up of highly corrosion resistant G316 stainless steel.
• Two eye bolts (stainless steel) at cantilever arm for anchor points.
• Max. Load capacity: 136 kg for rescue.
• Finish: Polished.
• Arm Strength: 300 kg for material use.
