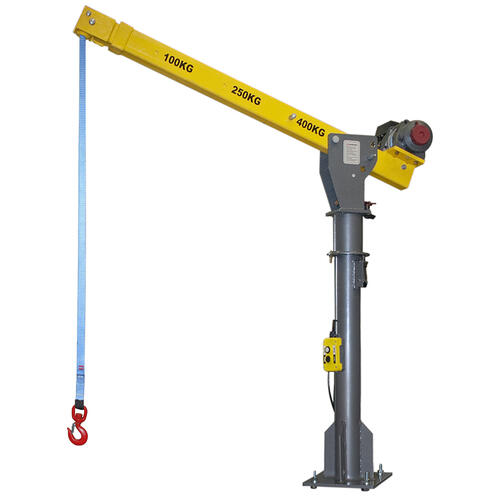

Aussie Fetch
Aussie Fetch is an upgraded design of vehicle crane. Austlift uses a flat web sling to replace the old wire rope sling to eliminate twisting for ease of use. A new slewing stop design for safer operating if the vehicle is parked on sloped ground. The design focus of this crane is to provide an economical, light weight lifting device to ensure safer lifting.
- Work load limit 400kg
- Maximum arm extension: 360 degrees unlimited slowing
- Compact design, folds away when not in use
- It can be installed by us, by authorised vehicle body builder, or by owner self with competent mechanical knowledge
| CODE | SWL (kg) | NW. (kg) | MAX LIFTING HEIGHT (mm) | MAX REACH (mm) | ROTATION |
|---|---|---|---|---|---|
| 145080 | 400 | 55 | 2000 | 1470 | 360° Manual |

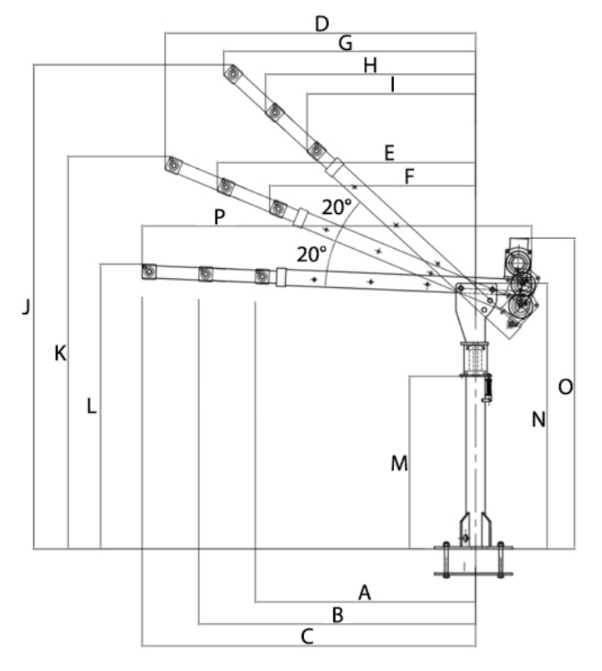

| DIMENSIONS (mm) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
| 973 | 1223 | 1472 | 1371 | 1140 | 909 | 1112 | 928 | 744 | 2133 | 1729 | 1255 | 760 | 1162 | 1370 | 1720 |
