Air-Operated Oil Pump Kit 1:1 ratio – 205L Stub type
Technical Specifications
1:1 Ratio pumps offer a higher flow rate but limited in delivery distance from drum transfer over short distances
5:1 Ratio pumps can supply at medium flow rates but have a capacity to deliver over longer distances

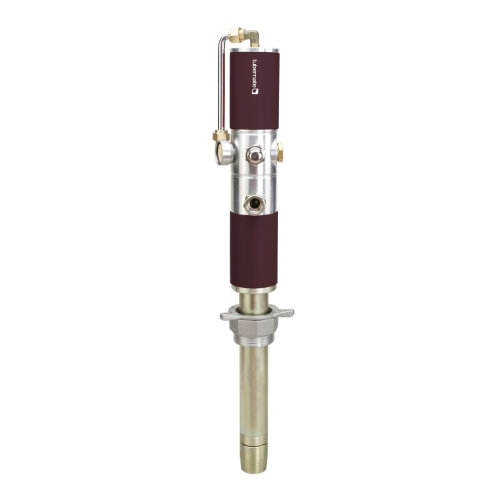

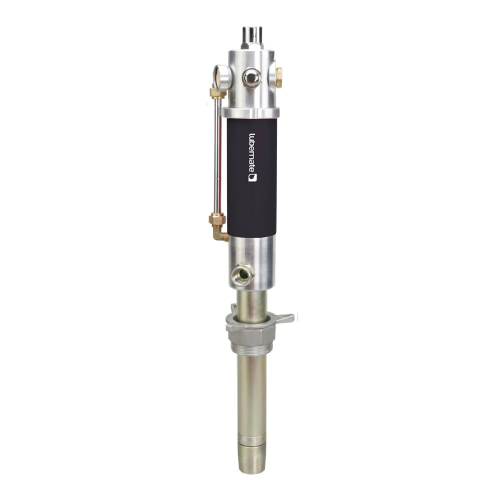

L-ARPS1 Suitable for oils or anti-freeze up to SAE 80 viscosity L-ARPS5 Suitable for oils or anti-freeze up to SAE 140 viscosity
L-ARPS1 Output up to 40LPM viscosity dependent L-ARPS5 Output up to 18LPM viscosity dependent
Min/Max air pressure: 30/150psi, air inlet 1/4” BSP(F)
Pump outlet 1/2” BSP(F), pump inlet 1” BSP(F)
Wetted materials: steel, brass, aluminum, nitrile rubber, polyurethane and turcite
