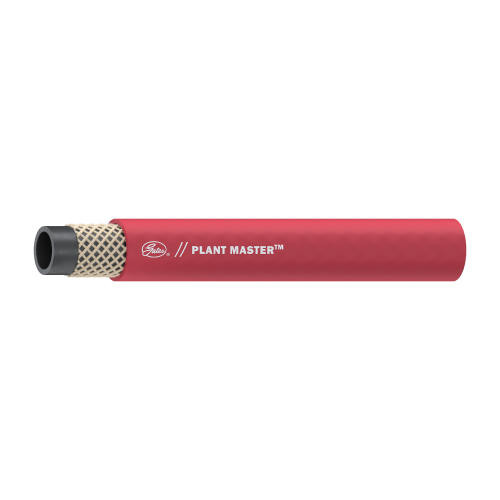

Plant Master® 200 – Gates
Tube: Type P (EPDM). Black.
Reinforcement: Synthetic, high tensile textile cord.
Cover: Type P (EPDM). Red, black, blue, green and yellow. All sizes thru 1/2″ are perforated.
Application: Air and water applications requiring maximum flexibility. Offers outstanding resistance to heat and ozone. it is also excellent for use with dilute solutions of agricultural chemicals such as Lasso* and Roundup*
Working Pressure: 250 psi / 1.72 Mpa
Temperature: -40°C +93°C
| Internal Diameter | Outer Diameter | Suction | Min. Bend Radius | Coil Length | Weight | ||||
| In. | mm | In. | mm | In. Hg | mm Hg | In. | mm | m | kg/m |
| 1 1/2 | 38.1 | 1.98 | 50.3 | 10.0 | 254 | 12.0 | 305 | 76 | 1.27 |
