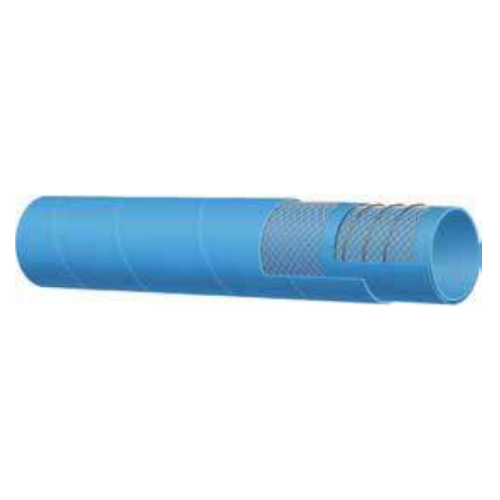

Acid & Chemical Suction & Delivery 16 Bar (240 psi) – Alfagomma 509OE
Tube: Transparent UPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Blue EPDM – abrasion and ozone resistant.
Application: Acid and chemical suction and delivery.
Suitable for 98% of existing chemicals. Food grade suitable for alcoholic beverages with max 95% ABV.
Working Pressure: 16 bar / 240 psi
Burst Pressure: 48 bar / 720 psi
Constant Operation: -30°C +100°C (-22°F +212°F)
| Internal Diameter | Outer Diameter | Bend Radius | Vacuum | Weight | ||||
| ID mm | ID inch | OD mm | OD Inch | mm | in | % | kg/m | lb/ft |
| 19 | 3/4″ | 31 | 1.22 | 114 | 4.49 | 90 | 0.59 | 0.40 |
| 25 | 1″ | 37 | 1.46 | 150 | 5.91 | 90 | 0.73 | 0.50 |
| 32 | 1 1/4″ | 44 | 1.73 | 192 | 7.56 | 90 | 0.88 | 0.60 |
| 38 | 1 1/2″ | 50 | 1.97 | 228 | 8.98 | 90 | 1.01 | 0.68 |
| 40 | 1 9/16″ | 52 | 2.05 | 240 | 9.45 | 90 | 1.05 | 0.71 |
| 51 | 2″ | 63 | 2.48 | 300 | 11.81 | 90 | 1.34 | 0.91 |
| 63 | 2 1/2″ | 77 | 3.03 | 378 | 14.88 | 90 | 2.09 | 1.41 |
| 76 | 3″ | 92 | 3.62 | 450 | 17.72 | 80 | 2.84 | 1.91 |
| 102 | 4″ | 118 | 4.65 | 600 | 23.62 | 80 | 3.87 | 2.61 |
