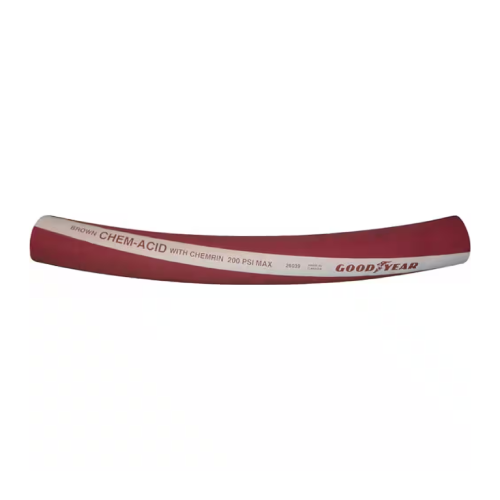

Acid Chemical Discharge Brown – Continental
Tube: Black Chemrin® (Chlorinated Polyethylene)
Cover: Brown Versigard (EPDM with Wrapped Impression)
Reinforcement: Synthetic fabric plies
Application: A versatile chemical discharge hose capable of handling a wide variety of acids, petroleum based products and other chemicals.
Working Pressure: 200 psi / 1.38 Mpa
Roll Length: 30.5m
Safety Factor: 4:1
Temperature: -34°C to +135°C
| Inner Diameter | Outer Diameter | Max. WP | Weight | |||
| Inch | mm | Inch | mm | psi | Mpa | kg/m |
| 3/4 | 19 | 1.47 | 37.31 | 200 | 1.38 | 0.85 |
| 1 | 25 | 1.55 | 39.40 | 200 | 1.38 | 0.95 |
| 1 1/4 | 32 | 1.81 | 46.10 | 200 | 1.38 | 1.15 |
| 1 1/2 | 38 | 2.05 | 52.10 | 200 | 1.38 | 1.33 |
| 2 | 50 | 2.61 | 66.40 | 200 | 1.38 | 1.89 |
| 2 1/2 | 63 | 3.11 | 79.00 | 150 | 1.00 | 2.30 |
| 3 | 75 | 3.60 | 91.40 | 150 | 1.00 | 2.70 |
| 4 | 100 | 4.67 | 118.60 | 150 | 1.00 | 3.85 |
