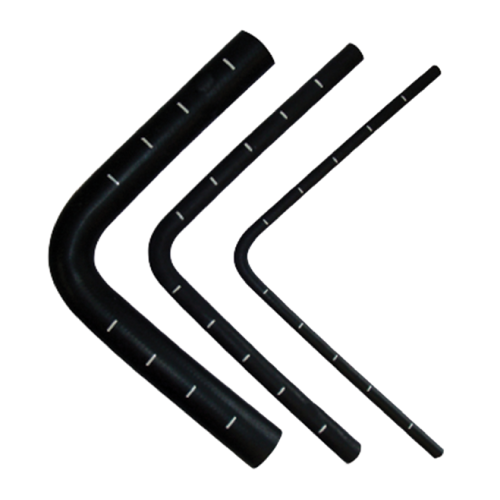

90° Moulded Heater Hose – Gates
Construction: EPDM tube, synthetic fibre reinforcement, EPDM cover. Resists water permeation.
Application: Compatible for air and water applications. Not for conveying fuel or oil.
SAE 20R3 EC Class D1 under 25mm (1″) ID, SAE 20R4 EC Class D1 for 25mm (1″) ID or larger.
Temperature: -40°C +135°C (-40°F to +275°F)
Caution: Do not use for fuel or oil transfer applications
| Internal Diameter | Arm 1 Centreline Length | Arm 2 Centreline Length | |
| In. | mm | mm | mm |
| 1/4 | 6.35 | 300 | 300 |
| 5/16 | 7.9 | 300 | 300 |
| 3/8 | 9.5 | 300 | 300 |
| 1/2 | 12.7 | 110 | 110 |
| 1/2 | 12.7 | 300 | 300 |
| 5/8 | 15.9 | 100 | 100 |
| 5/8 | 15.9 | 300 | 300 |
| 3/4 | 19 | 125 | 125 |
| 3/4 | 19 | 300 | 300 |
| 1 | 25.4 | 125 | 125 |
| 1 | 25.4 | 300 | 300 |
| 1 1/4 | 32 | 150 | 150 |
| 1 1/4 | 32 | 300 | 300 |
| 1 1/2 | 38 | 150 | 150 |
| 1 1/2 | 38 | 300 | 300 |
| 1 3/4 | 44 | 180 | 180 |
| 1 3/4 | 44 | 175 | 325 |
| 2 | 50 | 200 | 200 |
| 2 | 50 | 500 | 300 |
| 2 1/4 | 57 | 170 | 170 |
| 2 1/4 | 57 | 310 | 310 |
