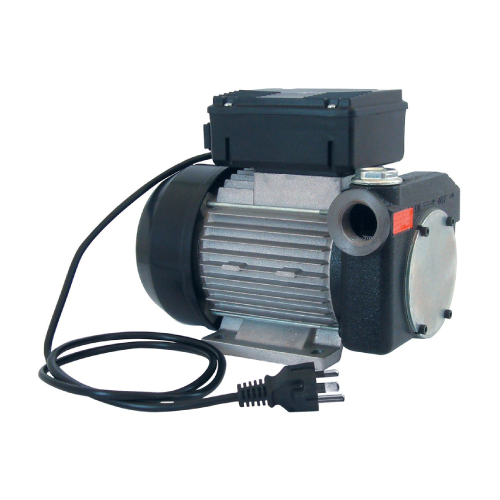

240V Electric Diesel Pump 70/100/150LPM – Macnaught
Macnaught now offers a range of 240V ELECTRIC DIESEL PUMPS. These self-priming rotary vane pumps are equipped with a self-ventilated induction engine, built-in bypass valve, stainless steel filter and a cast iron body with anti-corrosion coating. These sturdy pumps ensure reliability and a long service life.
Features
- Built-in Strainer
- Anti-corrosion coating
- Cast Iron Body
| Model | AFP12M | AFP24M | AFP12A |
| Flow Rate (L/min) | 70 | 100 | 150 |
| Fluids | Diesel | Diesel | Diesel |
| Duty Cycle | Continuous | 30 min | 30 min |
| Inlet/Outlet | 1″ BSPP (F) | 1″ BSPP (F) | 1″ BSPP (F) |
| Maximum Current Draw | 2.3 Amps | 4.1 Amps | 14.5 Amps |
| Rating | IP55 | IP55 | IP55 |
