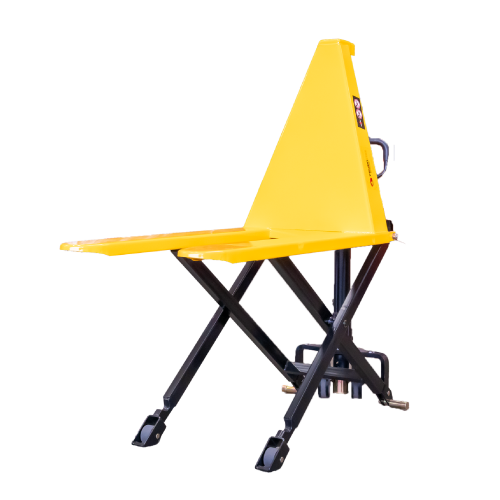

1000kg High Lift Pallet Jack / Pallet Truck – HLTN10-540

  • The lifter is rated to support up to 1000kg, making it ideal for lifting and handling heavy pallets and materials in warehouse and industrial environments.
  • With a width of 540mm, this pallet truck is designed to fit most standard pallets while providing excellent manoeuvrability in narrow aisles and tight spaces.
  • Entry and exit rollers prevent physical exertion for the operator while also protecting the load roller and pallet, reducing the risk of damage.
  • The totally sealed hydraulic pump ensures long-lasting durability and smooth operation, with a slow lowering hand control valve for precise lowering control.
  • Fully adjustable push rod under the forks allows for customisable lifting to accommodate different pallet sizes and operational needs.
  • Features a 3-position control handle, providing flexibility for easy operation and adjustment during use.
  • Grease fittings ensure easy maintenance and smooth operation of the pallet jack.
  • The skid lifter function makes this unit suitable as both a lift table and a workbench, providing versatile functionality for various tasks.
  • Stabilisers are included to ensure maximum stability, preventing tipping or wobbling during lifting and movement.
  • The design helps reduce unnecessary bending, improving ergonomics and operator comfort during use.
  • The pallet jack cannot be moved in a raised position for safety, ensuring the load remains secure and preventing accidents during operation.
Model HLTN10-540 HLTN10-680
Capacity 1000 kg 1000 kg
Fork Height Range 85 – 800 mm 85 – 800 mm
Fork Rollers 75 x 50 mm 75 x 50 mm
Overall Width of Forks 540 mm 680 mm
Fork Length 1150 mm 1150 mm
Steering Wheel 162 x 50 mm 162 x 50 mm
Big Wheel 180 x 50 mm 180 x 50 mm
N.W. 128 kg 128 kg
Warranty 1 year 1 year
