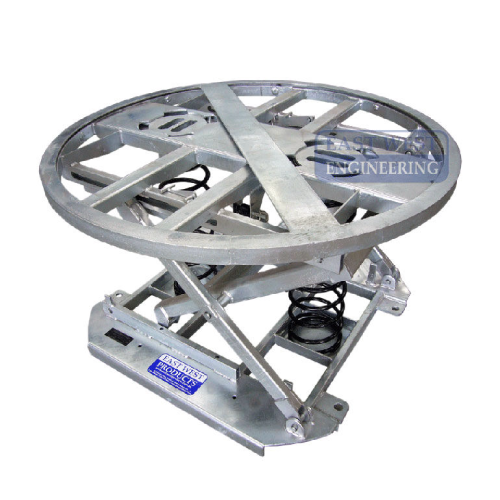

2000kg Spring Lift Table – BTL200

  • Enables ergonomic loading and unloading of heavy pallets, cages, and bins by a single operator, improving efficiency and safety in factory and warehouse settings.
  • The self-leveling mechanism allows the table height to easily adjust between 230mm and 705mm, ensuring optimal working height for different tasks and reducing the need for bending or stretching.
  • The rotating upper ring provides full access to all sides of the pallet, making it easier for the operator to handle and adjust items from any angle.
  • A rotational lock is built in to ensure safe and stable loading, preventing any accidental movement during operation.
  • The system is supplied with three springs (one to three used, depending on the weight of the pallet), allowing for customized support and optimal load handling.
  • The shock absorber ensures smooth and controlled raising and lowering of the table, minimizing abrupt movements and enhancing safety and comfort during use.
  • Fork pockets are conveniently fitted to make it easy for forklift operators to handle and position the equipment around the workplace, improving mobility and reducing manual effort.
  • The durable zinc finish offers excellent protection against rust and wear, extending the life of the equipment and maintaining its appearance in demanding environments.
Model BTL200
Capacity 2000 kg
Unit Weight 168 kg
Rotating Table Diameter 1110 mm
Base Size 915 x 930 mm
Height 230 – 705 mm
Fork Pocket Size 145 x 40 mm
Fork Pocket Centres 750 mm
