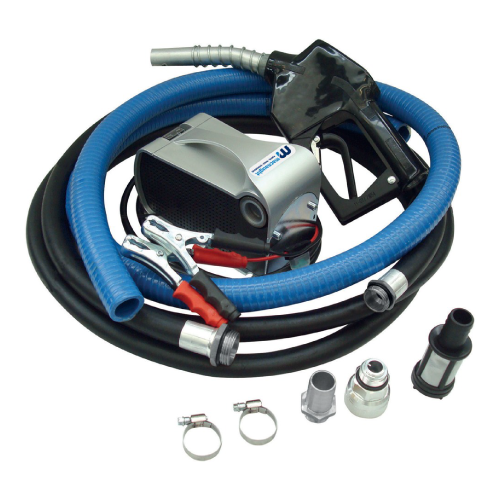

12V/24V Electric Diesel Pump Kit Auto/Manual Nozzle – Macnaught
Ideal for portable diesel transfer applications including bulk tank, service truck or utility vehicle applications these 12/24V ELECTRIC DIESEL PUMP KITS are an economical alternative to manual pumps. These electric diesel pumps are self-priming vane pump with a built-in by-pass valve delivering a superior cool running pump that has a 30 minute duty cycle. The pump delivers flow rates up to 40LPM (free flow). These pumps are supplied complete, everything needed for the operator to start transferring diesel. For the best control and accuracy, it is recommended to use the appropriate Macnaught digital diesel meter and filter.
Features
- Portable 40L/min Diesel – Pump -Available in 12V or 24V model
- Trouble Free Operation – Self-priming vane pump fitted with a built-in bypass valve.
- 3/4″ BSP Inlet/Outlet ports
- Portable design – Provides versatility for easy change-over of various type fuel containers
| Model | AFP12M | AFP24M | AFP12A | AFP24A |
| Flow Rate (L/min) | 40L/min | 40L/min | 40L/min | 40L/min |
| Voltage (V) | 12 V | 24 V | 12 V | 24 V |
| Duty Cycle (min) | 30/30 | 30/30 | 30/30 | 30/30 |
| Inlet/Outlet | 3/4″ BSP (F) | 3/4″ BSP (F) | 3/4″ BSP (F) | 3/4″ BSP (F) |
| Suction Hose | 25 mm x 2 m | 25 mm x 2 m | 25 mm x 2 m | 25 mm x 2 m |
| Delivery Hose | 19 mm x 4 m | 19 mm x 4 m | 19 mm x 4 m | 19 mm x 4 m |
| Power Cable | 4m power cable & alligator clips | 4m power cable & alligator clips | 4m power cable & alligator clips | 4m power cable & alligator clips |
| Nozzle | Manual | Manual | Automatic | Automatic |
