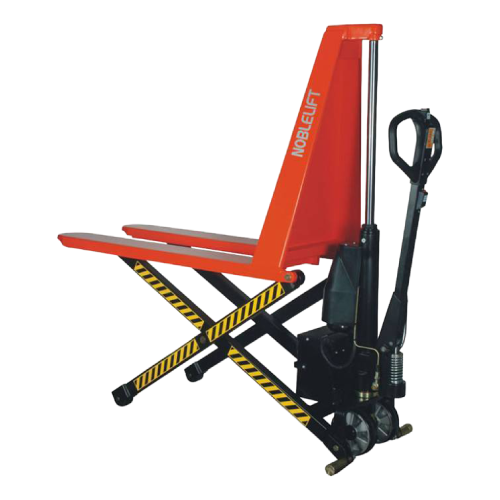

1000kg Heavy Duty Electric Pallet Jack Lithium Power – EX-540/685
- The lifter is rated to support up to 1000kg, making it suitable for lifting and transporting heavy loads in industrial and warehouse environments.
- One-cylinder system guarantees smooth and stable lifting, providing a reliable lifting mechanism without the risk of sudden drops from the second piston.
- Designed with the newest handle design that meets ergonomic requirements, offering comfortable and easy control for operators during use.
- Features a quick lift function that doubles the lifting speed for loads weighing 1000 kg or less, increasing efficiency during lifting and reducing downtime.
- Conforms to CE safety standards, ensuring that the lift meets all required safety regulations for operation within the European market.
- Lifting is powered both manually and electrically, allowing operators flexibility depending on power availability and operational needs.
- Lowering is manual, ensuring precise control when lowering heavy loads in a safe and controlled manner.
- Conforms to EN1757-4 and EN1175 safety standards, providing assurance that the lift meets rigorous European safety requirements for industrial equipment.
- Equipped with a built-out battery and charger, the lift achieves a low centre of gravity, enhancing stability and improving manoeuvrability even when carrying heavy loads.
| Model | EX-540 | EX-685 |
| Capacity | 1000 kg | 1000 kg |
| Min. Fork Height | 85 mm | 85 mm |
| Max. Fork Height | 800 mm | 800 mm |
| Width of Overall Fork | 540 mm | 685 mm |
| Length of Fork | 1170 mm | 1170 mm |
| Size of Fork | 160 x 50 mm | 160 x 50 mm |
| Fork Roller | 75 x 50 mm | 75 x 50 mm |
| Big Wheel | 180 x 50 mm | 180 x 50 mm |
| Battery (5hrs) | 12V / 60 Ah | 12V / 60 Ah |
| Weight | 169 kg | 169 kg |
| Warranty | 1 year | 1 year |
